BHIMA-ED
ENGINE DRIVE / PTO - HYDRAULIC STEERING SYSTEMS

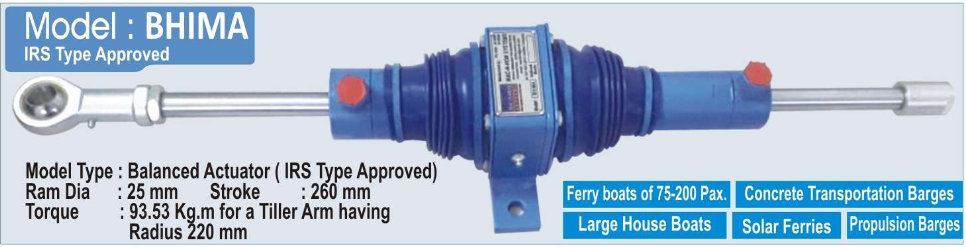

Model : BHIMA-ED is planned for medium and heavy in-board vessels like

  •  For Passenger Boats of 75-200 PAX
  •  House Boats
  •  Light Barges

TECHNICAL SPECIFICATION

Specification Bhima
Hydraulic Actuator Ram Size(mm) 25
Hydraulic Actuator Thrust @40kg/cm2(Kgf) 588kgf (5768 N)
Hydraulic Torque | 180mm (45 °) 105.8kgf (1038 N)
@ Tiller arm length | 220mm (35 °) 129.4kgf (1270 N)
Hydraulic Actuator Stroke 260mm
Tiller Arm Turn Upto45 ° both sides
Steering System Steering Wheel/Joy Stick
Number of turns Standard 4+4
Optional 2+2
