ELECTRO-HYDRAULIC STEERING SYSTEM FOR INBOARD VESSELS

Our decades of experience in Hydraulic as well as Marine Systems proved that, Manual-Hydraulic Steering systems can be used for effort-less drive of Marine Vessels requiring maximum rudder torque of 150-200 Kg.m.

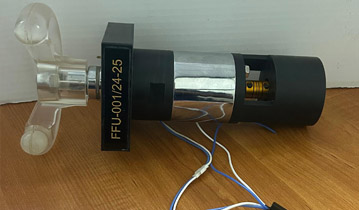

When we plan Hydraulic Steering Systems for Marine Vessels requiring rudder-torque of more than 200 Kg.m, due to their higher area of rudder plate or Higher Speed, we recommend Electro-Hydraulic steering for smooth, effortless control of vessels.

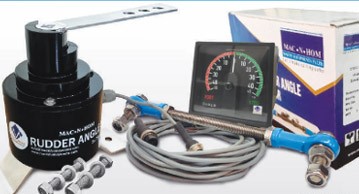

COMPONENTS OF MANUAL-HYDRAULIC STEERING SYSTEMS

HYDRAULIC ACTUATORS

A Hydraulic Actuator is planned, to turn the Tiller-Arm to both sides of the vessel, smoothly and precisely. Oil supply ports are provided on both sides of this actuator, through which, oil can be supplied to the piston of the actuator. As pressurised oil is supplied from the Helm Pump to the Linear Actuator, the piston-rod will move forward or backward, depending on, to which supply port, oil is provided. The Piston rod-end / Ram-end of this actuator has a flexible connector, which can be coupled to the Tiller-Arm. As the driver rotates the steering wheel to one side, oil filled in the circuit flows from one side of the circuit to the other side of the circuit, enabling the Piston rod of Actuator to move from one side to the other. When the driver rotates in opposite direction, the same process will repeat resulting Piston rod movement in the opposite direction.

1. Model: CETO with capacity to provide 50-75 Kg.m is planned for Smaller Boats/ 25pax boats/ Ambulance Boats/ Tourist Boats
2. Model: BHIMA with capacity to provide 75-120 Kg.m is planned for 100 pax Ferries, light Barges

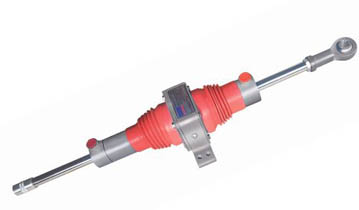

3. Model: Hercules with capacity upto 250 Kg.m for Medium Cargo Barges, 200 pax Ferries, Large House Boats

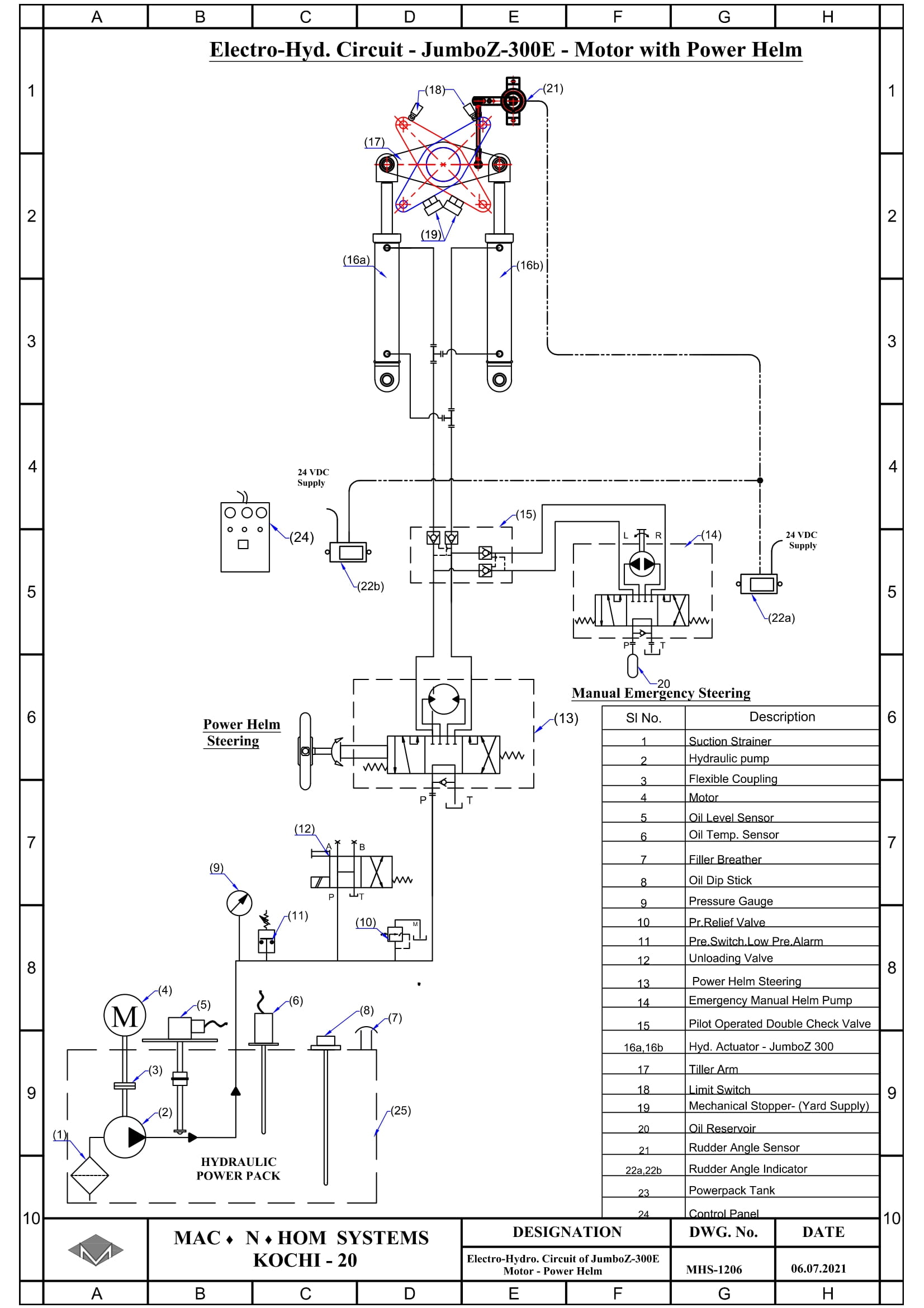

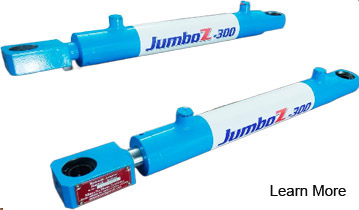

4. Model: JumboZ-300 with capacity upto 350 Kg.m for Fishing Vessels, High Speed Passenger Boats
5. Model: JumboZ-500 with capacity upto 700 Kg.m for Tug Boats, Bollard Pull Boats,Heavy Duty Fishing Vessels, Medium Barges
6. Model: JumboZ-1500 with Capacity upto 1500 Kg.m for Heavy Tug Boats, Barges

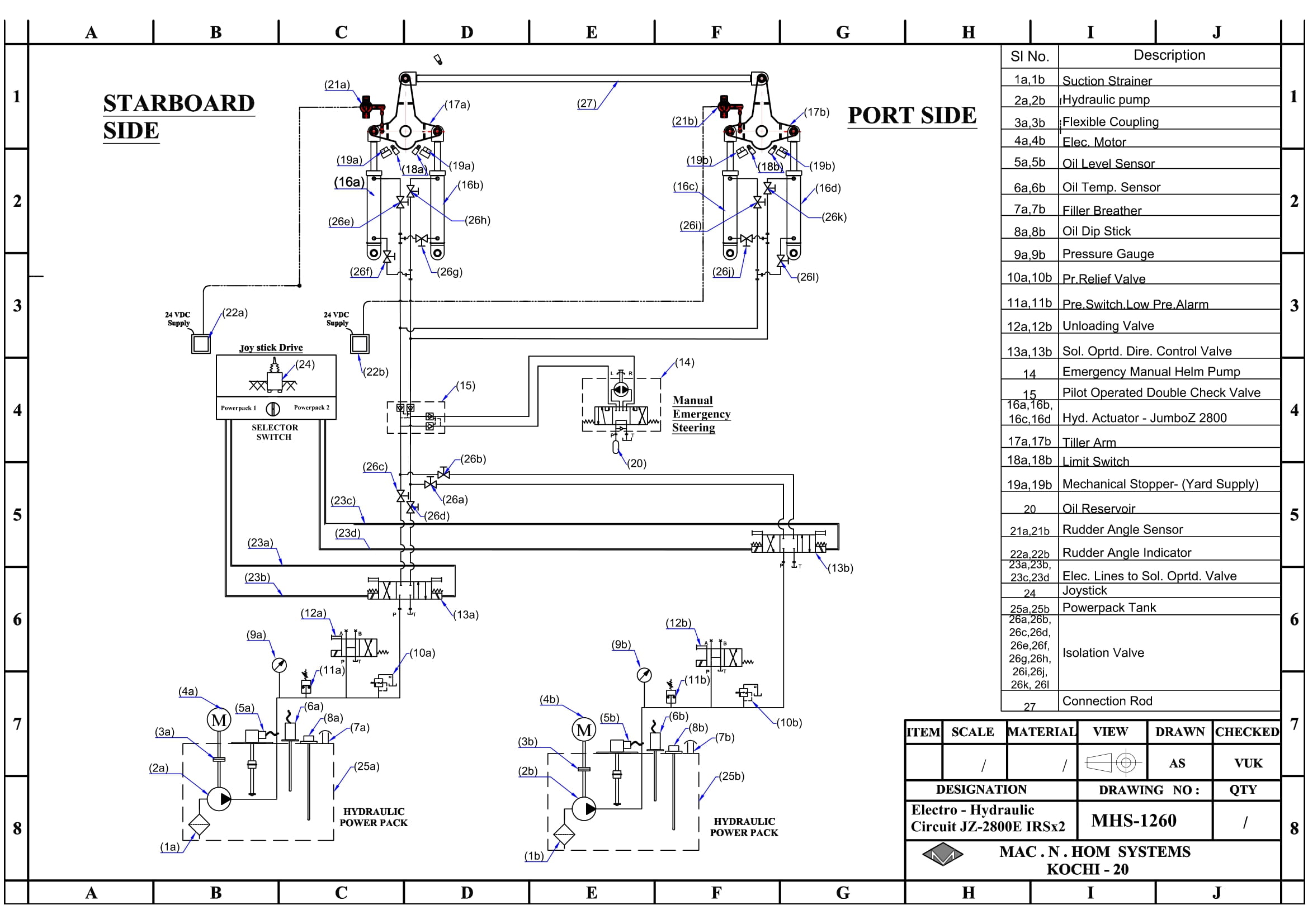

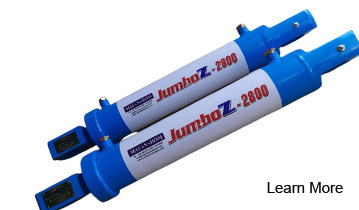

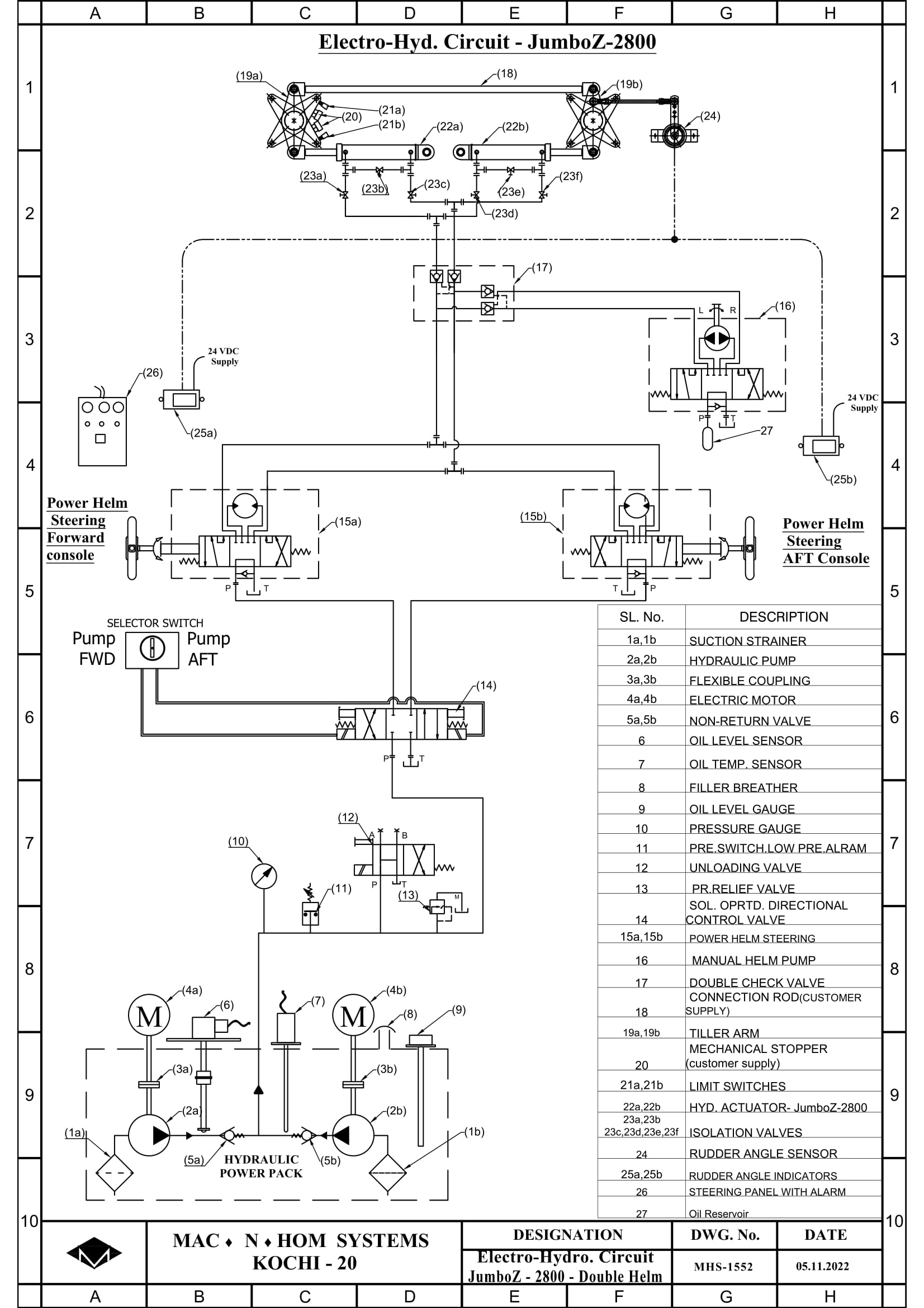

7. Model: JumboZ-2800 with Capacity upto 2800 Kg.m for Heavy Barges, Sea Going Fire Floats
