JumboZ-300-E
ELECTRO/POWER - HYDRAULIC STEERING SYSTEMS

Model : JumboZ-300-E is planned for in-board vessels like

  •  Purse - Sein & Trawler fishing vessels
  •  Sea going Survey vessels.

TECHNICAL SPECIFICATION

Specification JumboZ-Rethna

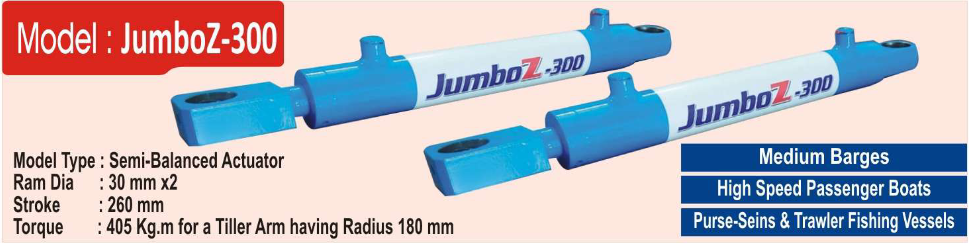

Hydraulic Actuator Ram Size(mm) 30X2 Nos
Hydraulic Actuator Thrust (Kgf) 2450@ 70kg/cm2
Hydraulic Actuator Torque with Tiller Arm of 180mm (kg.m) 300
Hydraulic Actuator Stroke(mm) 260
Tiller Arm Type Double Ended
Tiller Arm Turn Upto 45 ° both sides
Steering System Steering Wheel/Joy Stick
Emergency Manual Steering Optional
Low Pressure Alarm Optional
Temperature Alarm Optional
Port/Starboard End Alarm Optional
Rudder Position Indicator Optional

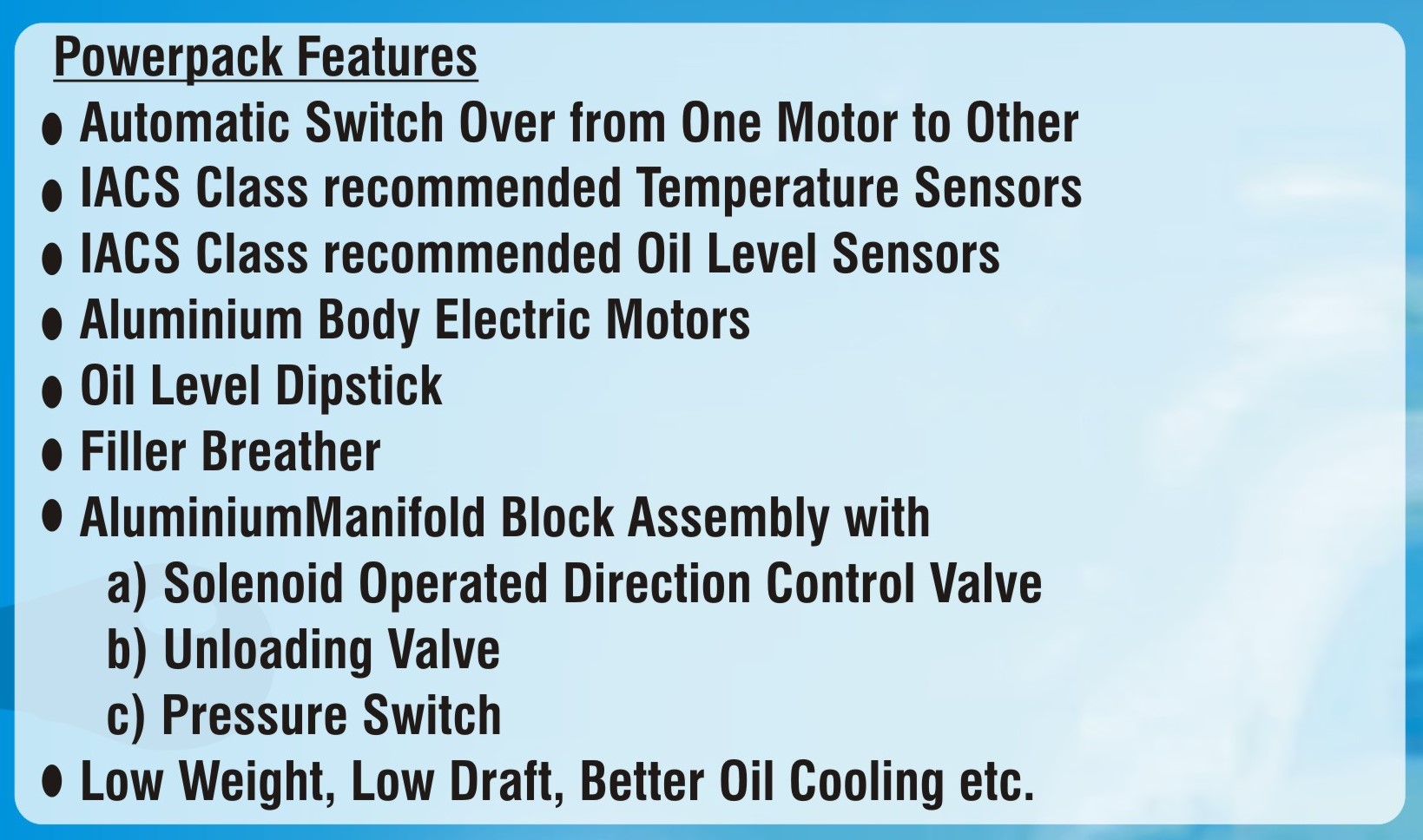

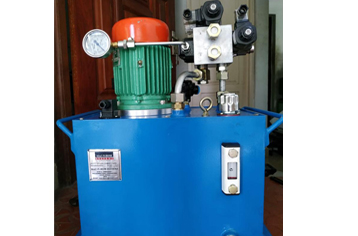

SINGLE-MOTOR AC POWERPACK

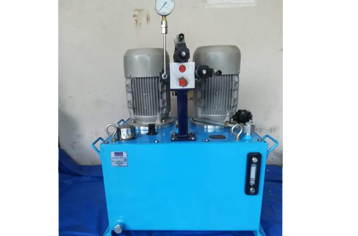

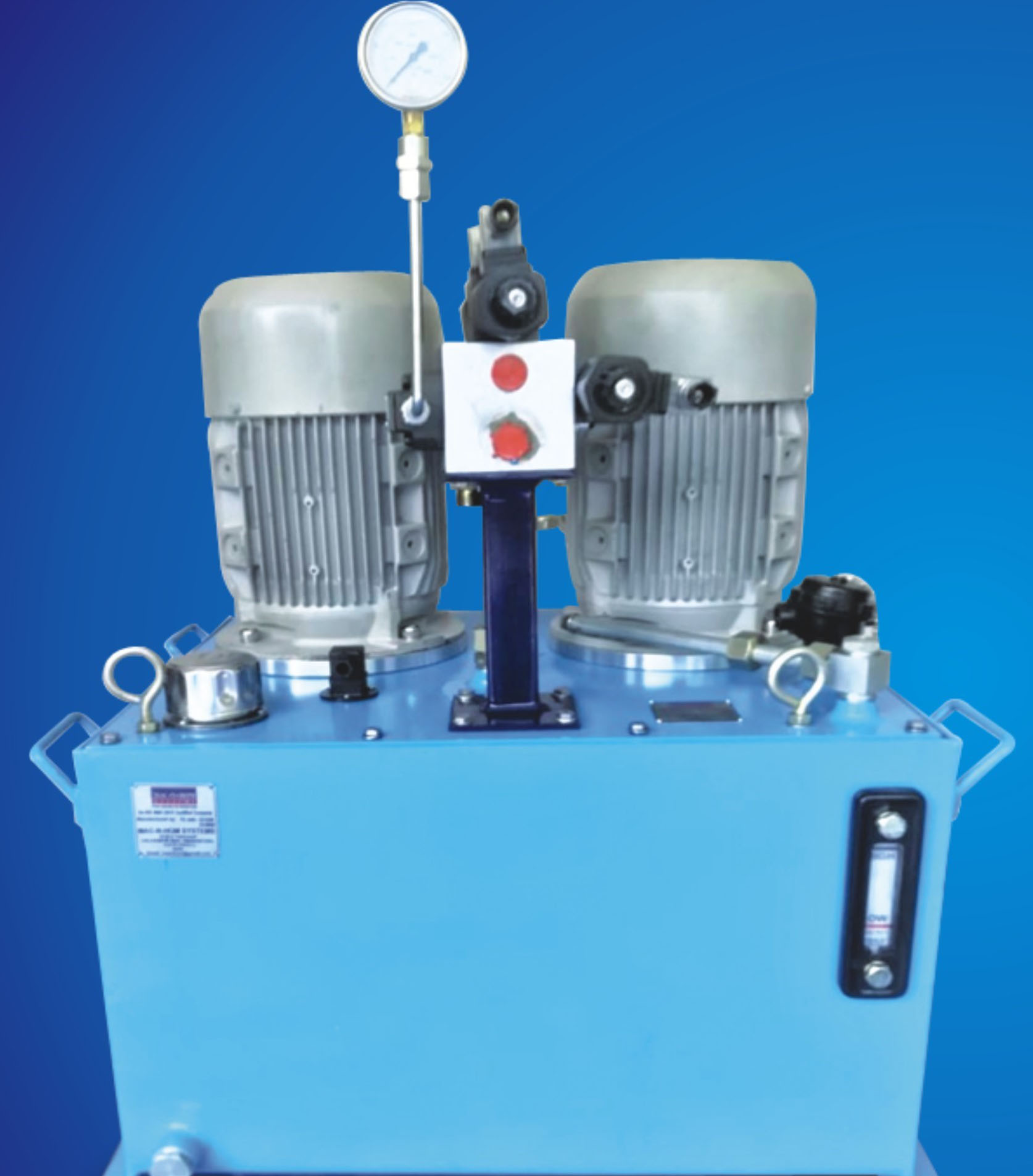

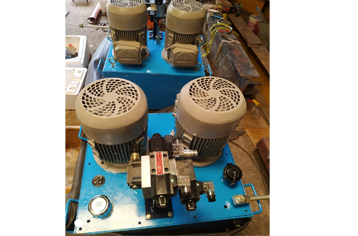

TWIN-MOTOR AC POWERPACK

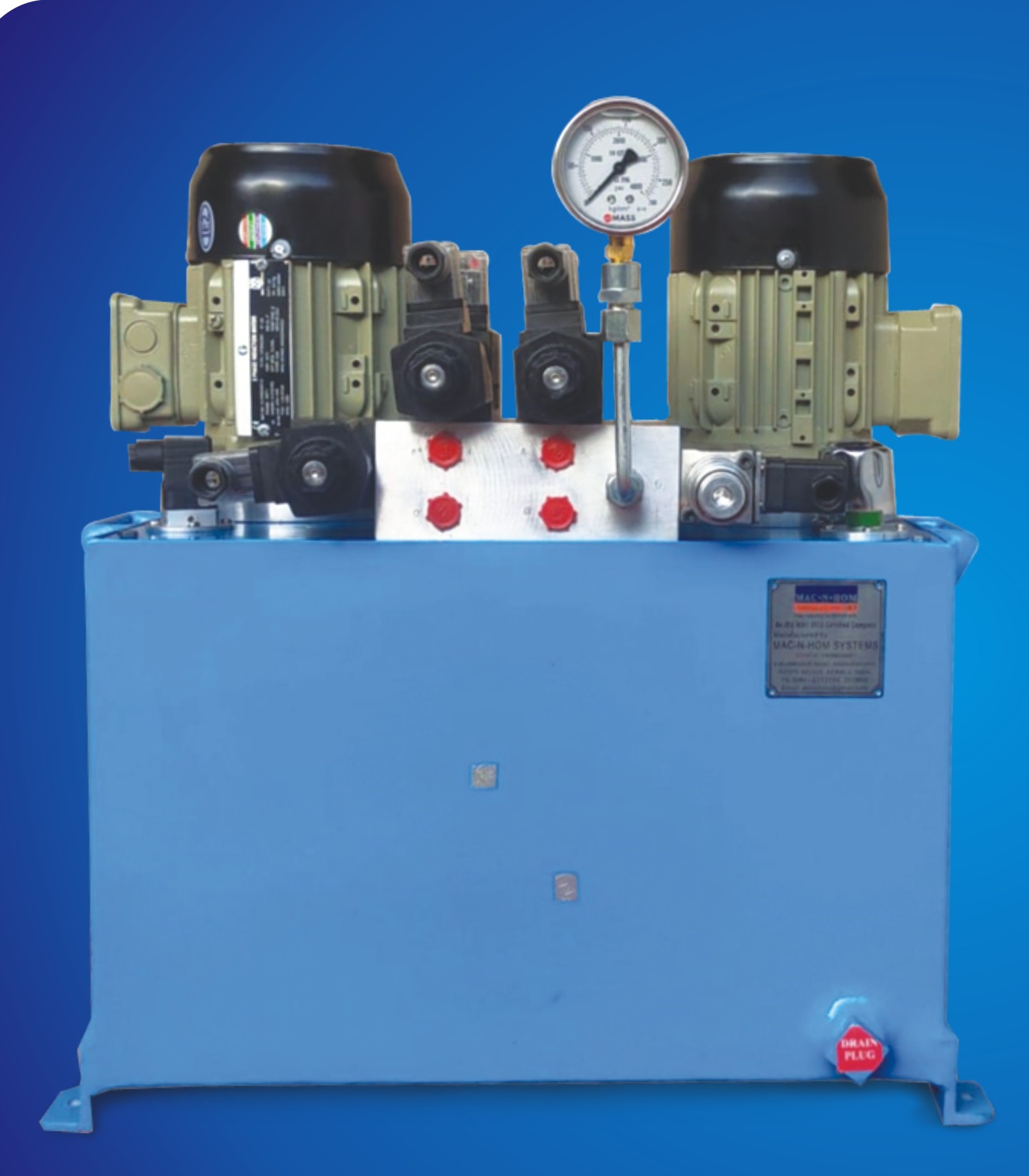

ALUMINIUM AC POWERPACK

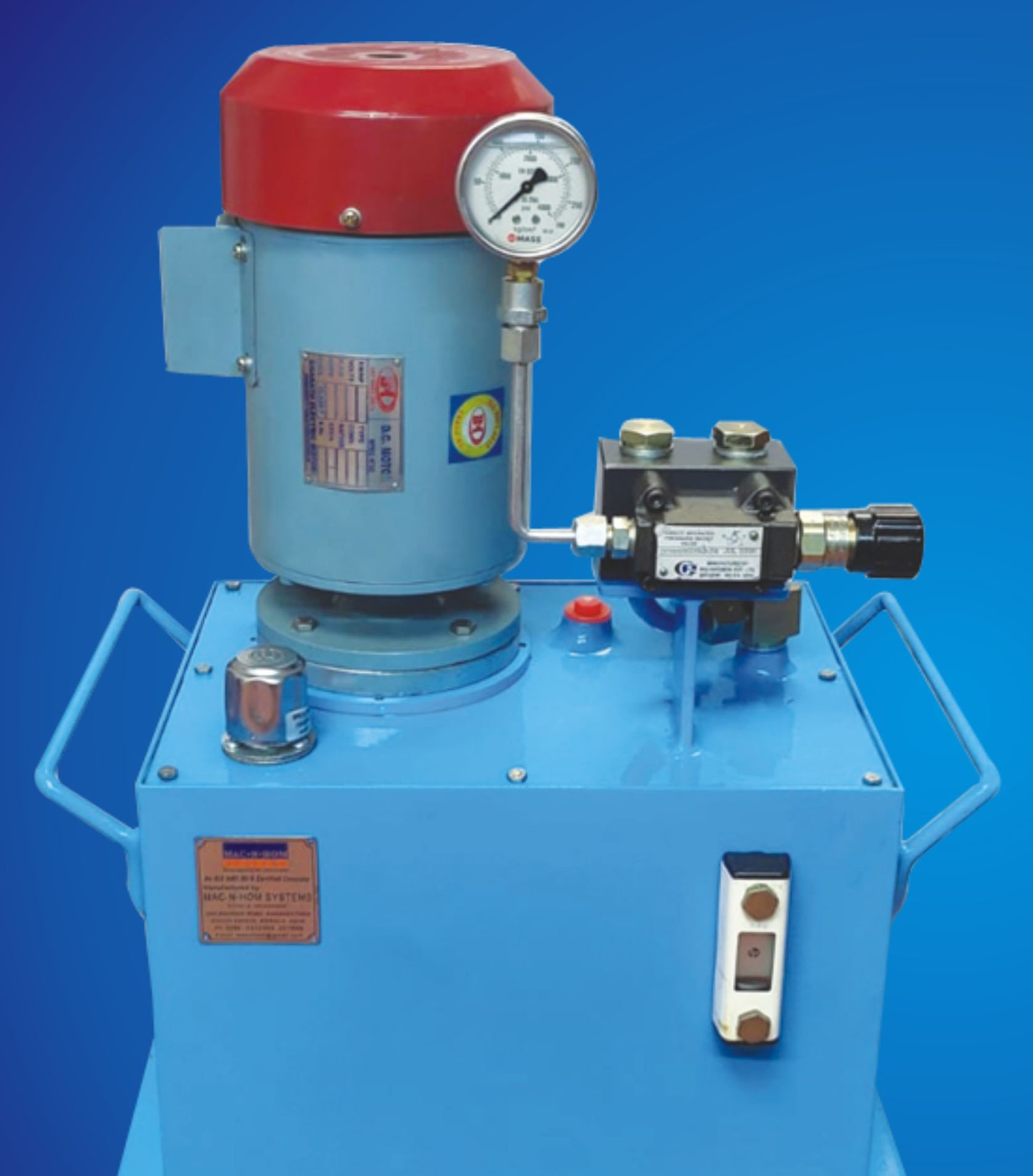

DC MOTOR POWERPACK

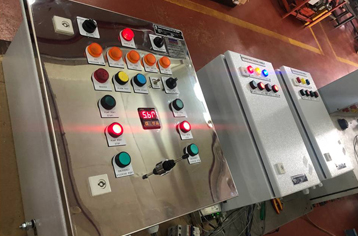

ELECTRICAL CONTROL PANEL

Joystick Operated Control Panel for     Twin-Motor Electro-Hydraulic Powerpack

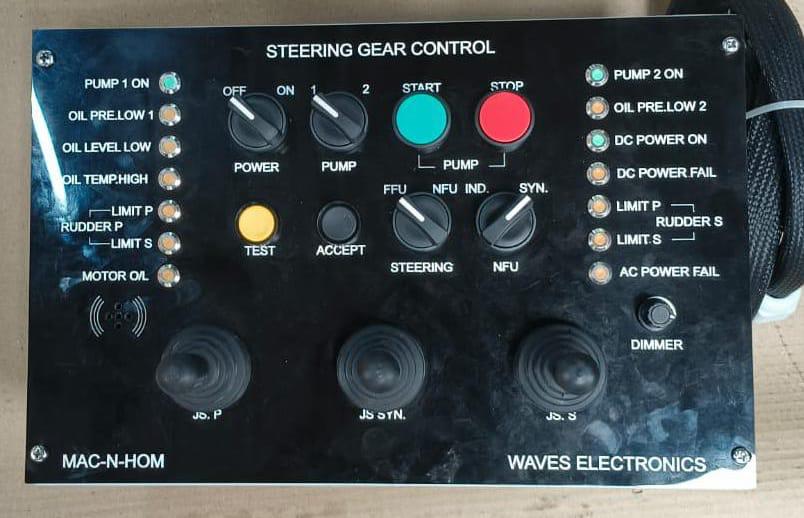

Double Joystick Control Panel for Steering Gear Control

3 Joystick Steering Gear Panel

Joystick Operated Control Panel for Single Motor Electro-Hydraulic Powerpack

Single Joystick Control Panel for Twin Powerpacks

Relay Panel

Powerpack Control Panel

Junction Box

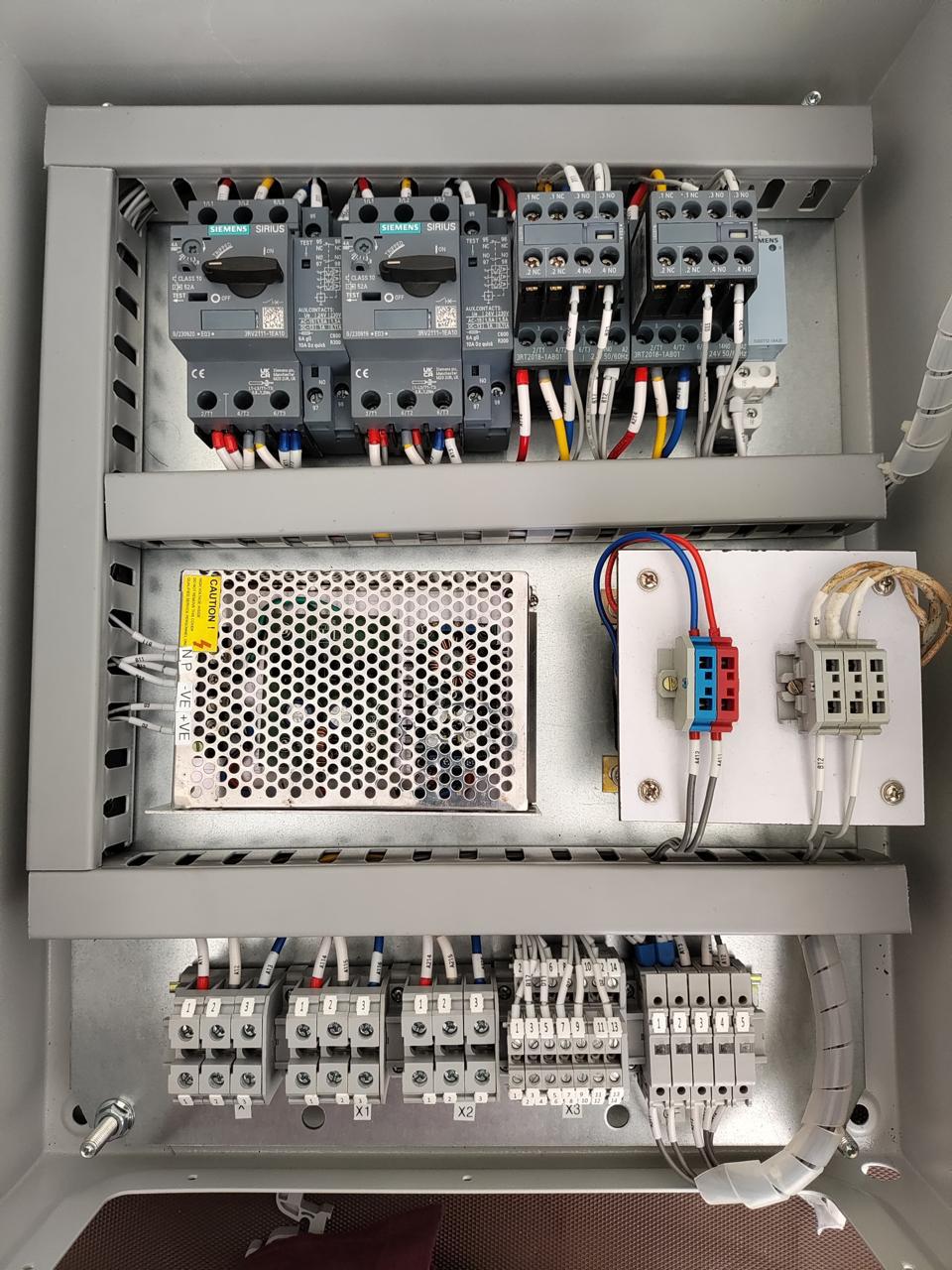

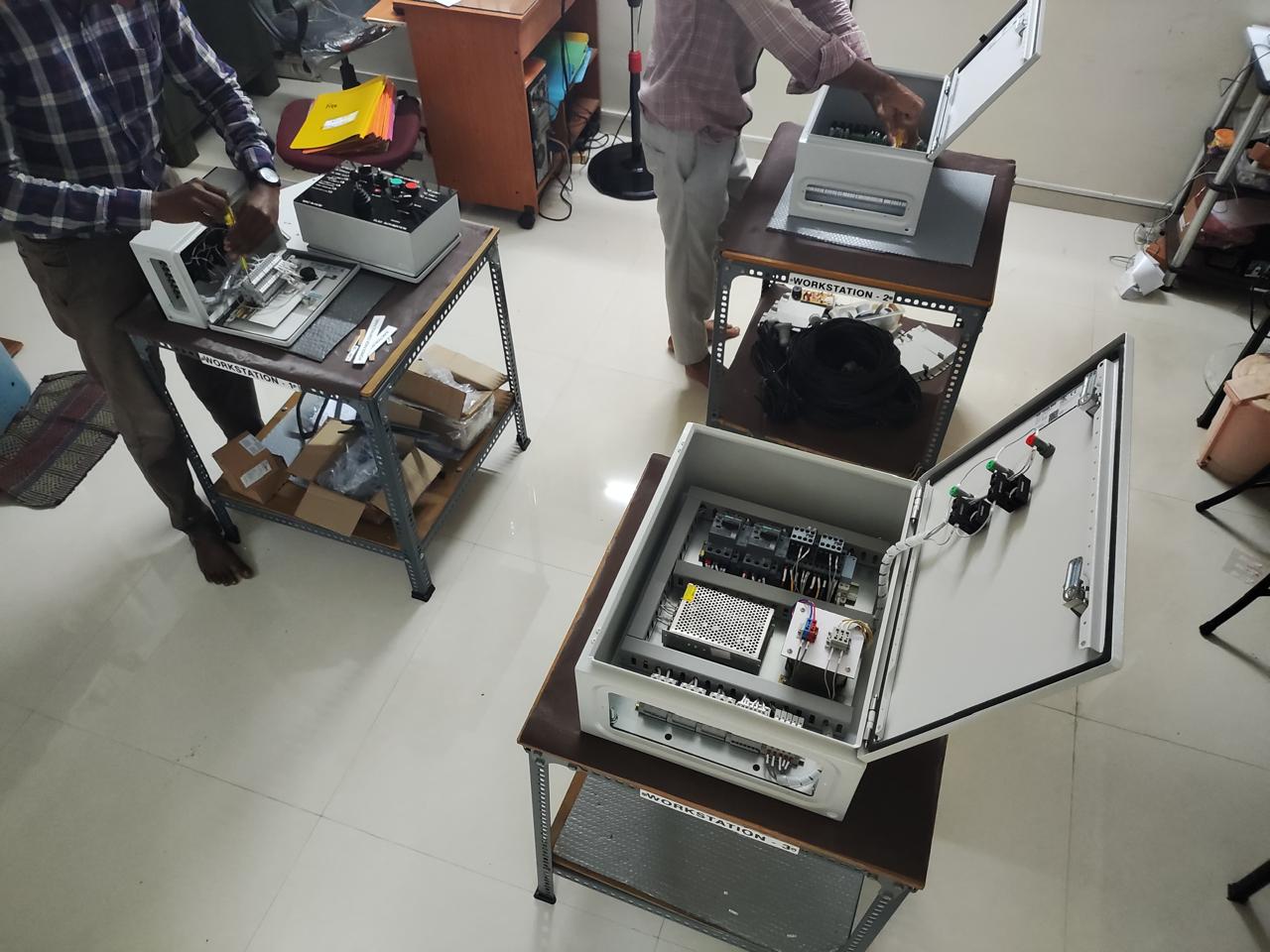

Control Panel Assembly Bay

Control Panel Wiring View

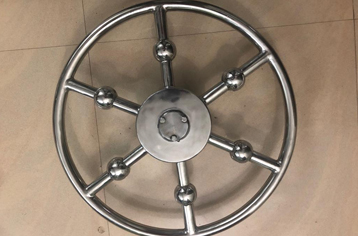

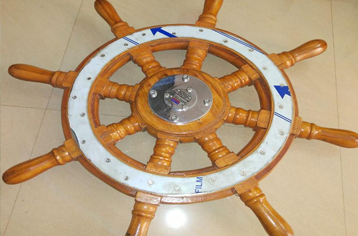

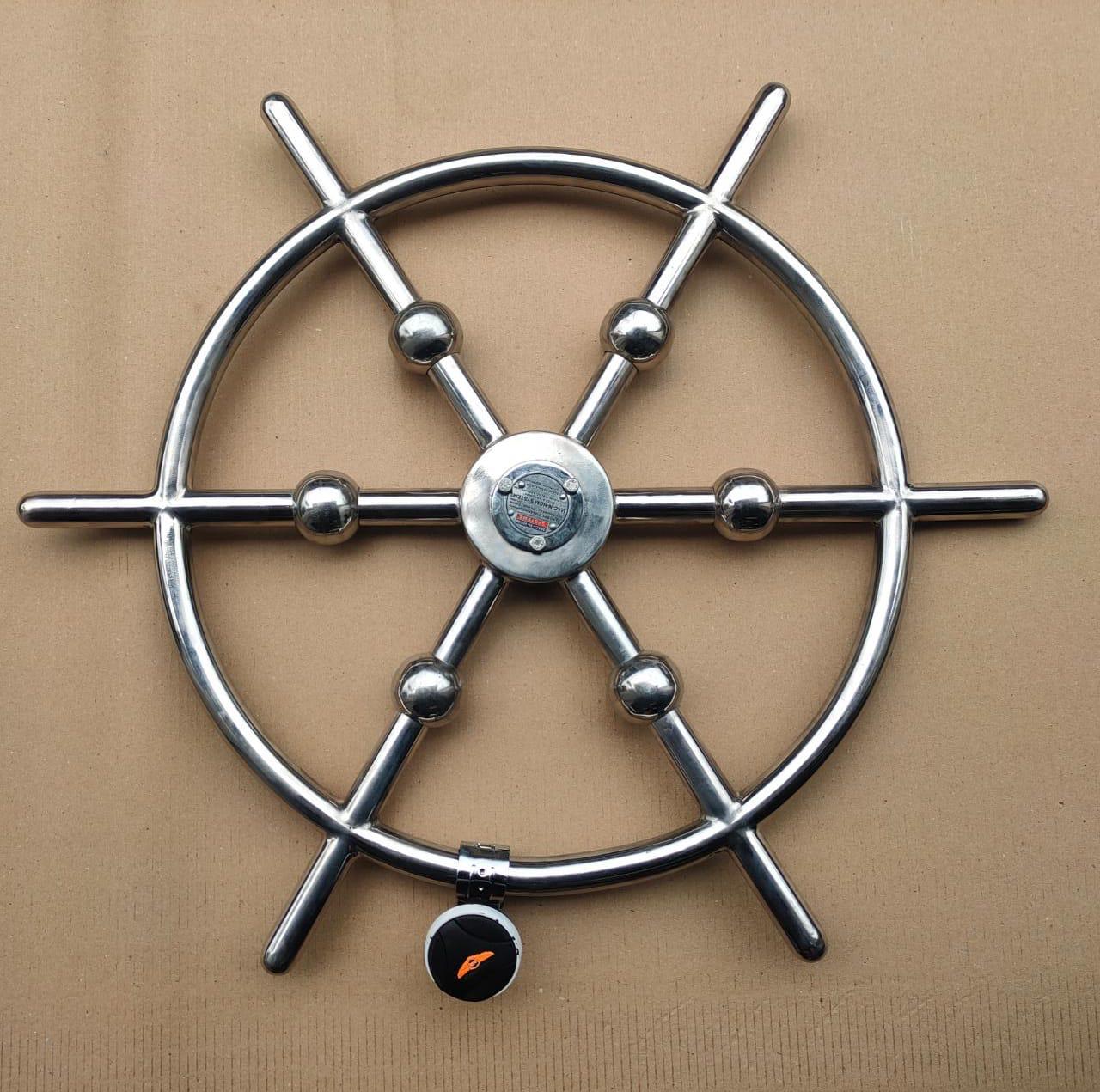

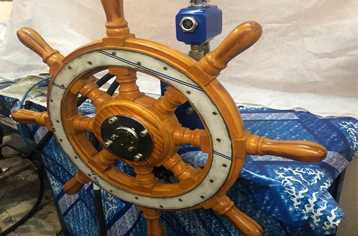

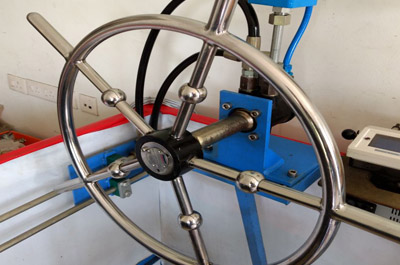

EMERGENCY STEERING - STAINLESS STEEL/WOOD CARVED STEERING WHEEL
