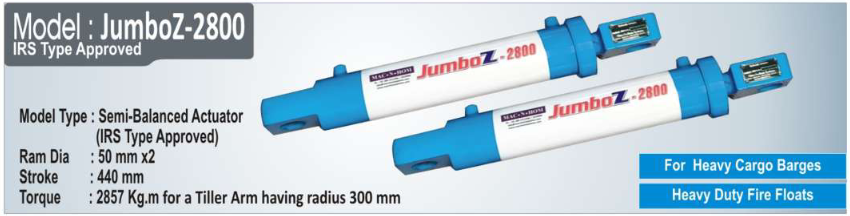

Model : JumboZ-2800-E is planned for medium and heavy in-board vessels like
ELECTRICAL CONTROL PANEL
EMERGENCY STEERING - STAINLESS STEEL/WOOD CARVED STEERING WHEEL
MOUNTING ARRANGEMENTS
VIDEO GALLERY
COMPONENTS OF POWER - HYDRAULIC STEERING SYSTEMS

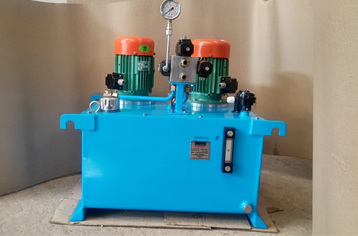

In Electro/Engine drive system, an Electric Motor driven / Engine Driven Powerpack, is providing the pressurised oil to the system. Hydraulic pump is coupled to a shaft, driven by Engine/Electric Motor This type of Electro-Hydraulic Powerpack Driven by Electric Motor, are used in Heavy Barges and Mini Ships, where Generators are used to power the steering system Photograph below shows a typical Engine Driven Powerpack fitted in a fishing vessel, with sea-water cooled oil cooler.
A Pair of Semi-Balanced Hydraulic Linear Actuators are planned, to turn the tiller-arm to both sides of the vessel, smoothly and precisely. Oil supply ports are provided on both sides of the these actuators, through which ,oil can be supplied to the pistons of the actuators. As pressurised oil is supplied from Helm pump to the Linear Acuator, the piston-rod will move forward or backward depending on to which supply port ,oil is provided The pistonrod-end/Ram-end of this actuator has a flexible connector ,which can be coupled to the Tiller-Arm As the driver rotates the steering wheel to oneside oil filled in the circuit flows from one side of the circuit to the other side of the circuit,enabling the Piston rod of Actuator to move from one side to the other . When the driver rotates in opposite direction the same process will repeat resulting piston-rod movement in the opposite direction
Flexible Hoses, as well as Coated Seamless Steel Tubes are recommended for transmission of oil from the Helm Pump to the Hydraulic Actuator. In small boats, Flexible Hoses will be sufficient. But in longer vessels,Coated Seamless Steel tubes are recommended between Flexible Hoses at the Helm Pump-end and Actuator-end.
Quality control system of our company demands endurance test with cyclic operations of Hydraulic Actuator at various hydraulic pressure levels. We are employing electro hydraulic system based Endurance-Test-Rig to ensure quality of balanced hydraulic actuator, that every cylinder supplied is in accordance with highest quality level , for long service life. We ensure each and every element supplied to the customer exceeds the demanded service requirements of the system, Each Hydraulic actuator to be supplied is mounted in our Test-Rig, and undergoes rigorous testing before it reaches the customer.
