JumboZ-1500-E
ELECTRO/POWER - HYDRAULIC STEERING SYSTEMS

Model : JumboZ-1500-E is planned for medium and heavy in-board vessels like

  •  Cargo barges
  •  Medium barges
  •  Tug and Bollard Pullers

TECHNICAL SPECIFICATION

Specification JumboZ-500
Hydraulic Actuator Ram Size(mm) 45X2 Nos
Force @ 70 kg/cm2 Pressure 58,156 N
Hydraulic Actuator Torque with Tiller Arm of 300mm (kg.m) 1778 Kgm
Hydraulic Actuator Stroke(mm) 440
Tiller Arm Type Double Ended
Tiller Arm Turn Upto 45 ° both sides
Steering System Steering Wheel/Joy Stick
Emergency Manual Steering Built-in
Low Pressure Alarm Optional
Temperature Alarm Optional
Port/Starboard End Alarm Optional
Rudder Position Indicator Optional

SINGLE-MOTOR AC POWERPACK

TWIN-MOTOR AC POWERPACK

ALUMINIUM AC POWERPACK

DC MOTOR POWERPACK


ELECTRICAL CONTROL PANEL

Joystick Operated Control Panel for     Twin-Motor Electro-Hydraulic Powerpack

Double Joystick Control Panel for Steering Gear Control

3 Joystick Steering Gear Panel

Joystick Operated Control Panel for Single Motor Electro-Hydraulic Powerpack

Single Joystick Control Panel for Twin Powerpacks

Relay Panel

Powerpack Control Panel

Junction Box

Control Panel Assembly Bay

Control Panel Wiring View


EMERGENCY STEERING - STAINLESS STEEL/WOOD CARVED STEERING WHEEL

MOUNTING ARRANGEMENTS

MHS-1479A-JumboZ-1500-E-Twin Motor-Single Rudder
Download

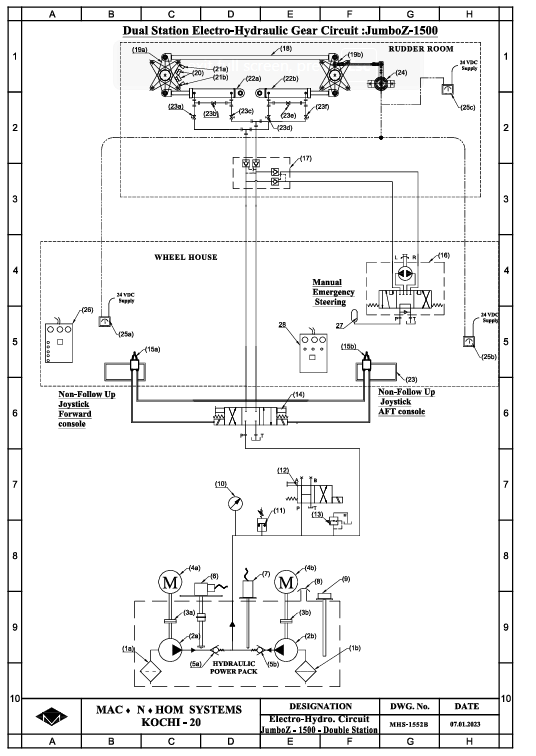

MHS-1552B-JumboZ-1500-E Double Joystick
Download

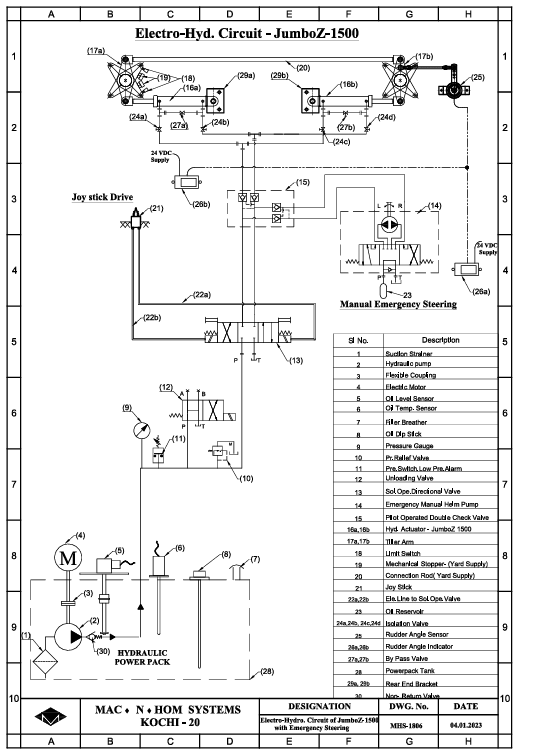

MHS-1806-JumboZ-1500-E Single Motor
Download

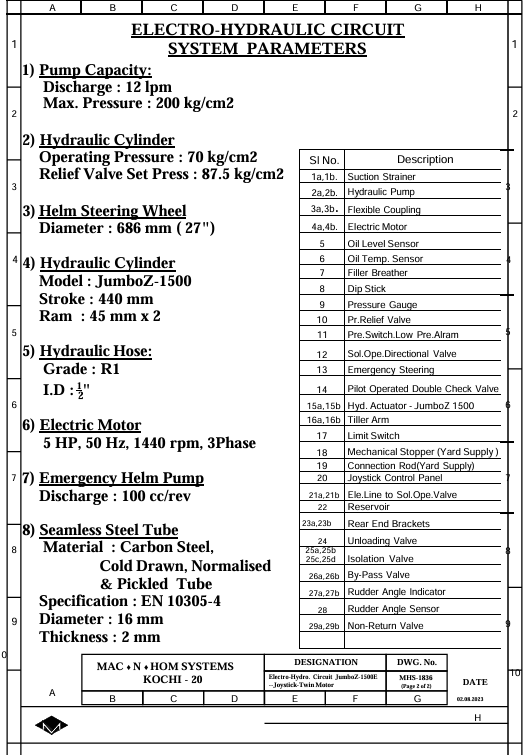

MHS-1836-JumboZ-1500-E-Twin Motor-Joystick
Download

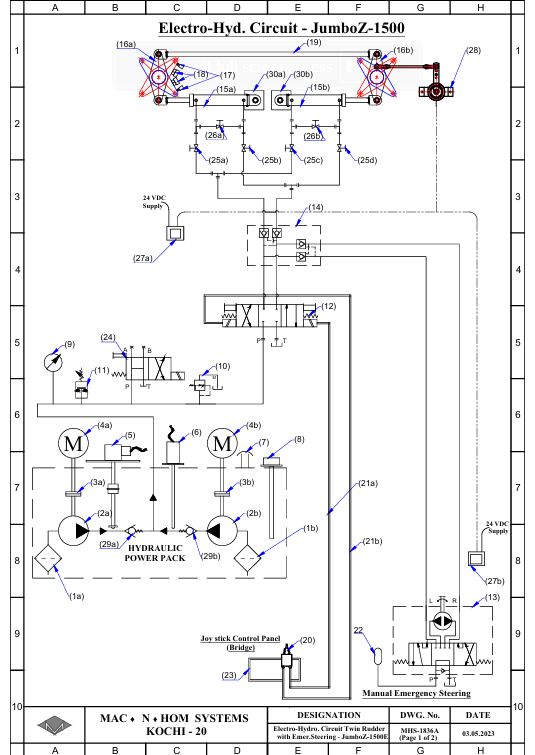

MHS-1836A-JumboZ-1500E-Twin Motor-Joystick
Download

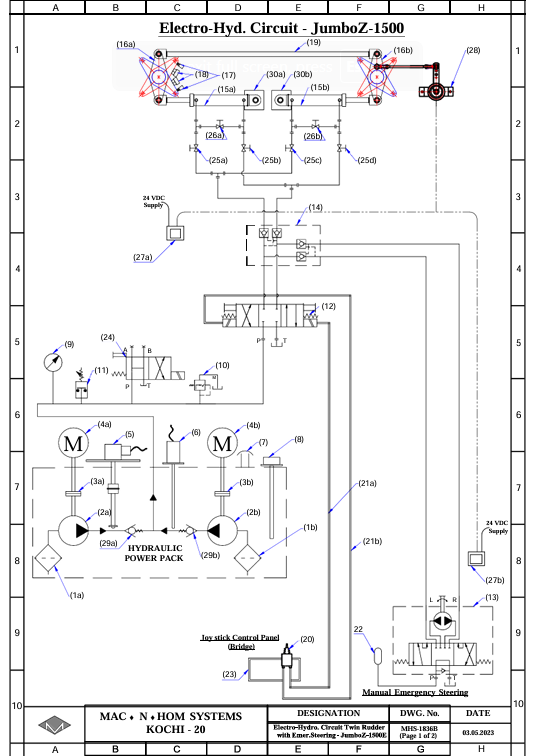

MHS-1836B-JumboZ-1500E-Twin Motor-Joystick
Download

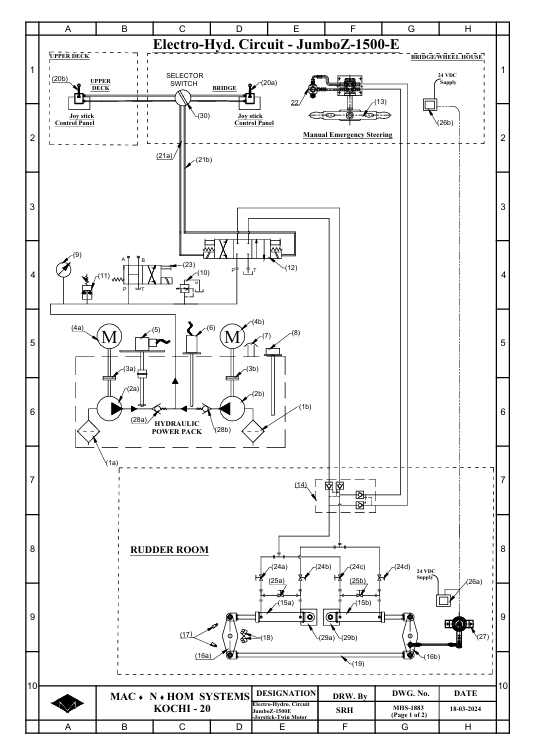

MHS-1883-JumboZ-1500 E-Twin Control Panel
Download

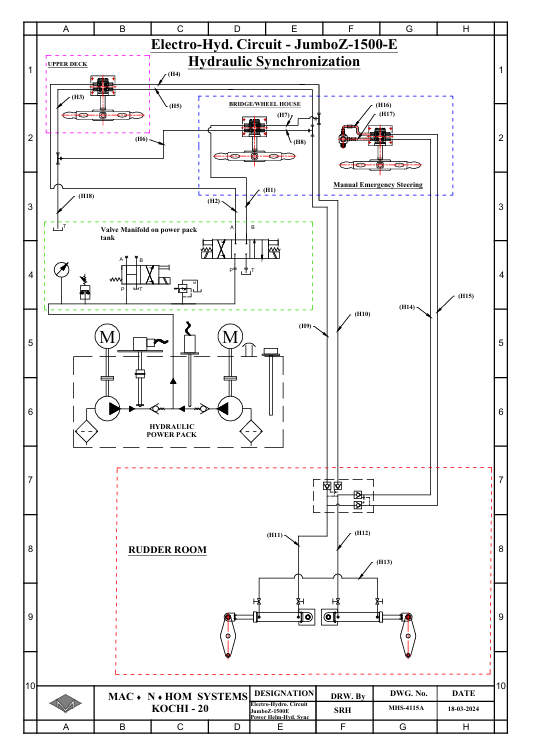

MHS-4115A-Jumboz1500-E glolo Hose routing
Download
