CETO-ED
ENGINE DRIVE / PTO - HYDRAULIC STEERING SYSTEMS

Model : CETO-ED is planned for medium sized in-board vessels like

  •  Passenger Boats -10-25 PAX
  •  Survey Vessels
  •  Ambulence/ Rescue Boats-Medium Size

TECHNICAL SPECIFICATION

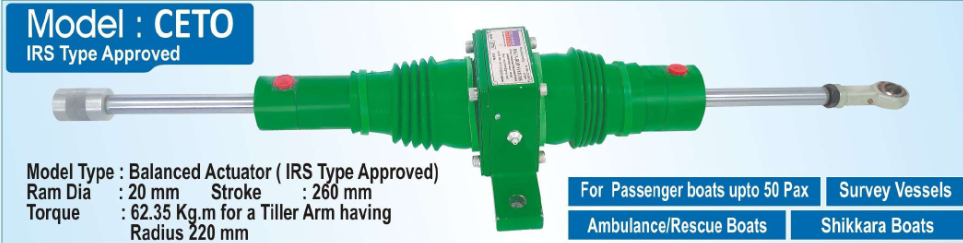

Specification Ceto
Hydraulic Actuator Ram Size(mm) 20
Hydraulic Actuator Thrust @40kg/cm2(Kgf) 376kgf (3688 N)
Hydraulic Torque | 180mm (45 °) 67.7kgf (664 N)
@ Tiller arm length | 220mm (35 °) 82.7kgf (811 N)
Hydraulic Actuator Stroke 260mm
Tiller Arm Turn Upto45 ° both sides
Steering System Steering Wheel/Joy Stick
Number of turns Standard 2½+2½
Optional 1½+1½

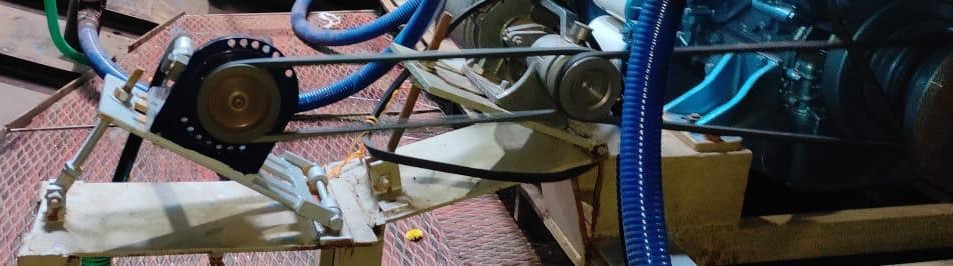

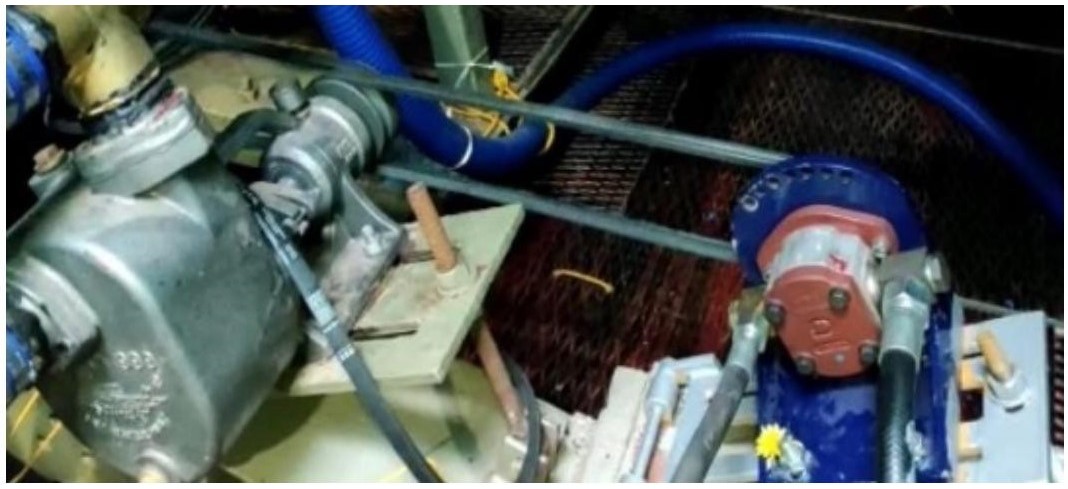

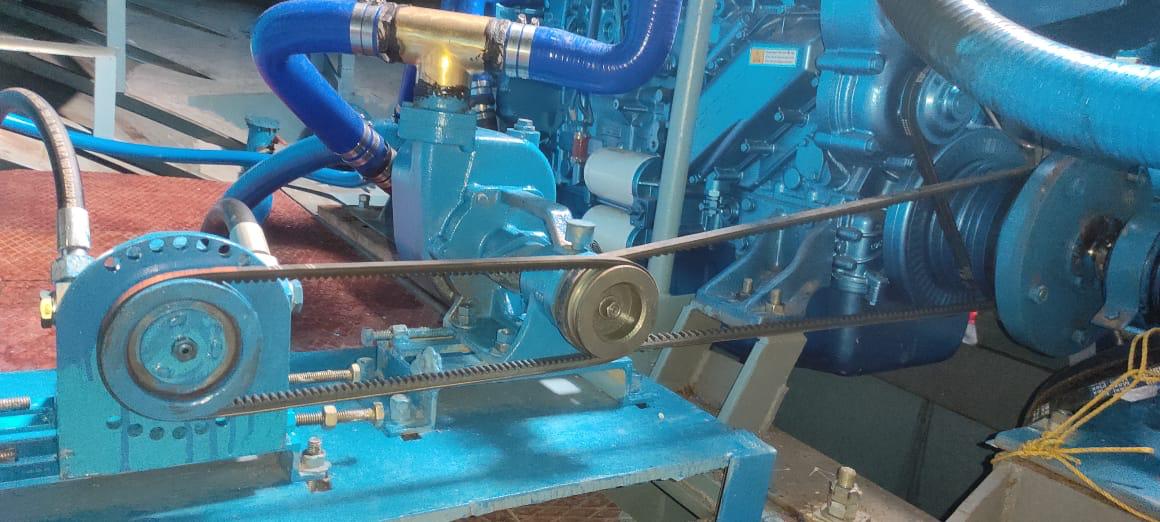

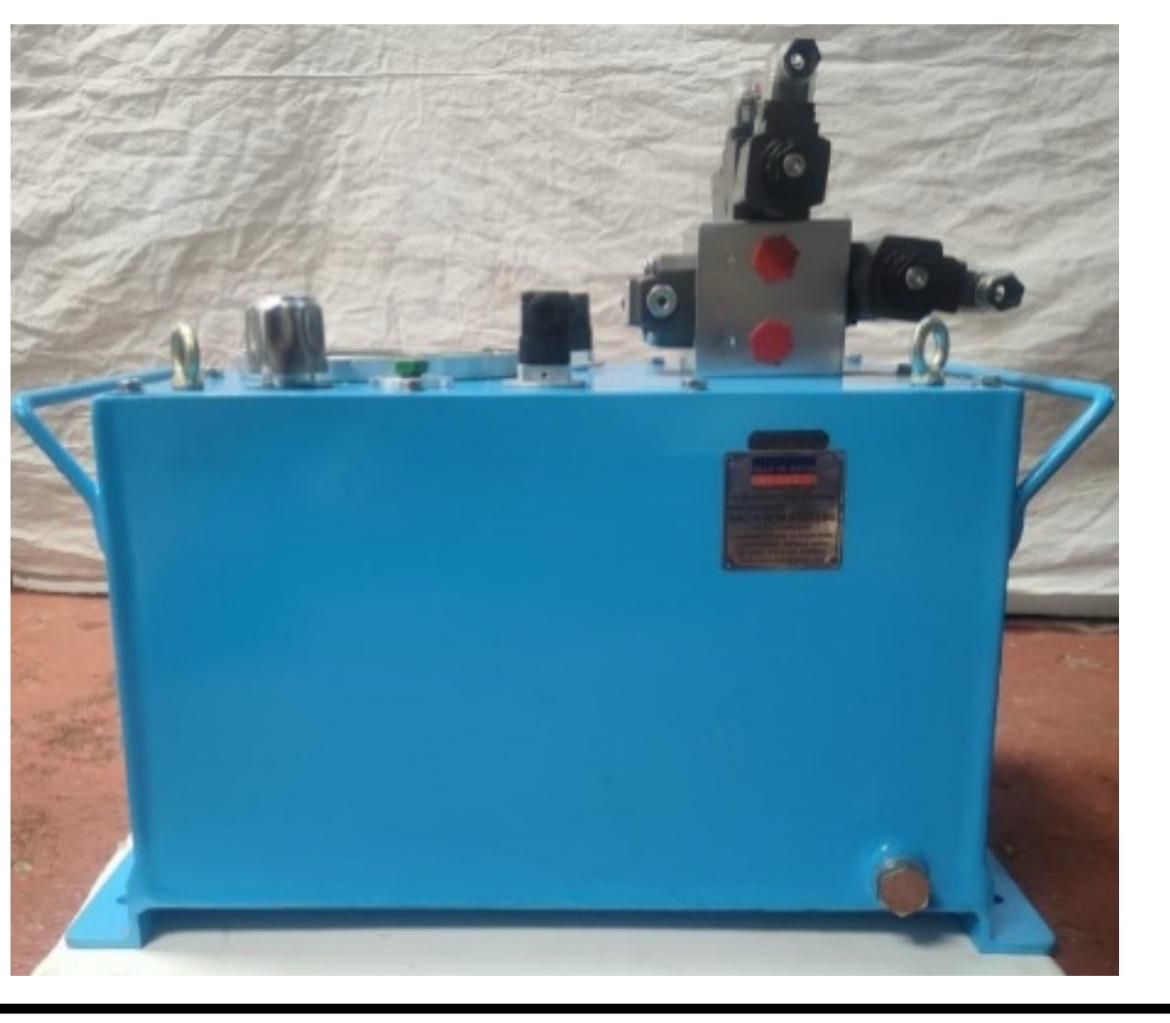

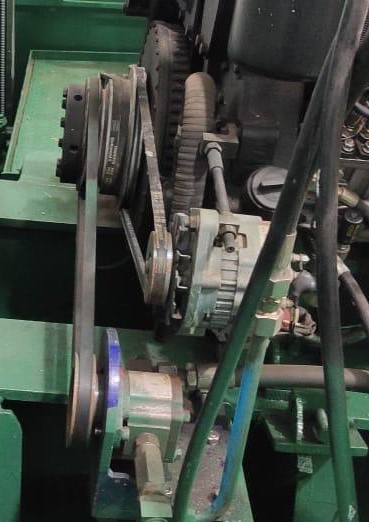

ENGINE DRIVEN POWERPACK


ELECTRICAL CONTROL PANEL

Joystick Operated Control Panel for     Twin-Motor Electro-Hydraulic Powerpack

Double Joystick Control Panel for Steering Gear Control

3 Joystick Steering Gear Panel

Joystick Operated Control Panel for Single Motor Electro-Hydraulic Powerpack

Single Joystick Control Panel for Twin Powerpacks

Relay Panel

Powerpack Control Panel

Junction Box

Control Panel Assembly Bay

Control Panel Wiring View


POWER HELM PUMP

STAINLESS STEEL/WOOD CARVED STEERING WHEEL

VIDEO GALLERY

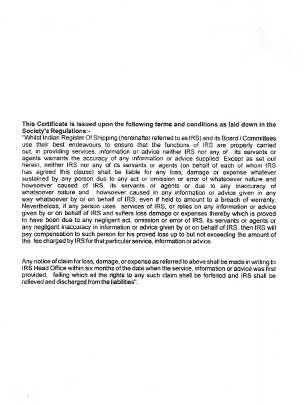

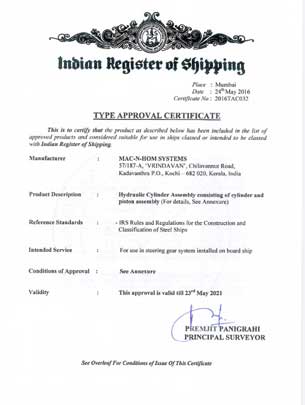

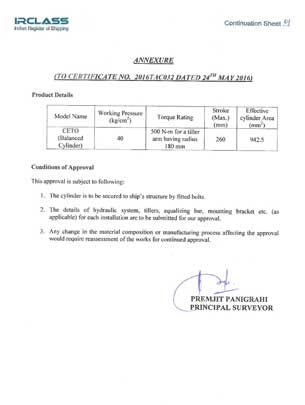

OUR CERTIFICATES
