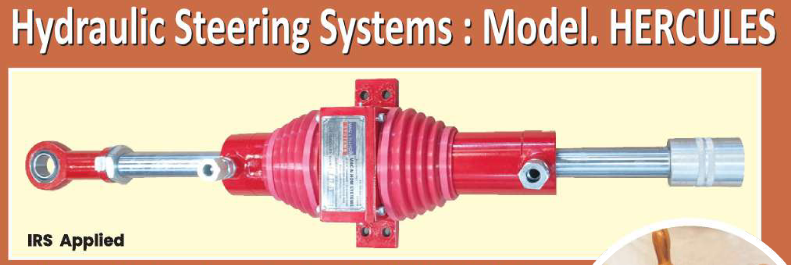

HERCULES-ED
ENGINE DRIVE / PTO - HYDRAULIC STEERING SYSTEMS

Model : HERCULES-ED is planned for medium and heavy in-board vessels like

  •  Medium Cargo Barges
  •  Ferry Boats of 75-200 PAX
  •  Propulsion Barges
  •  Solar Ferries
  •  Large House Boats

TECHNICAL SPECIFICATION

Specification Hercules
Hydraulic Actuator Ram Size(mm) 40
Hydraulic Actuator Thrust @45kg/cm2(Kgf) 930kgf (3688 N)
Hydraulic Torque | 180mm (45 °) 259 Kgm
@ Tiller arm length | 220mm (35 °) 317 Kgm
Hydraulic Actuator Stroke 260mm
Tiller Arm Turn Upto45 ° both sides
Steering System Steering Wheel/Joy Stick

ENGINE DRIVEN POWERPACK


ELECTRICAL CONTROL PANEL

Joystick Operated Control Panel for     Twin-Motor Electro-Hydraulic Powerpack

Double Joystick Control Panel for Steering Gear Control

3 Joystick Steering Gear Panel

Joystick Operated Control Panel for Single Motor Electro-Hydraulic Powerpack

Single Joystick Control Panel for Twin Powerpacks

Relay Panel

Powerpack Control Panel

Junction Box

Control Panel Assembly Bay

Control Panel Wiring View


POWER HELM PUMP

STAINLESS STEEL/WOOD CARVED STEERING WHEEL

VIDEO GALLERY

MOUNTING ARRANGEMENTS

MHS-4157A-HERCULES-ED with valves
Download
MHS-1856-HERCULES-ED
Download
