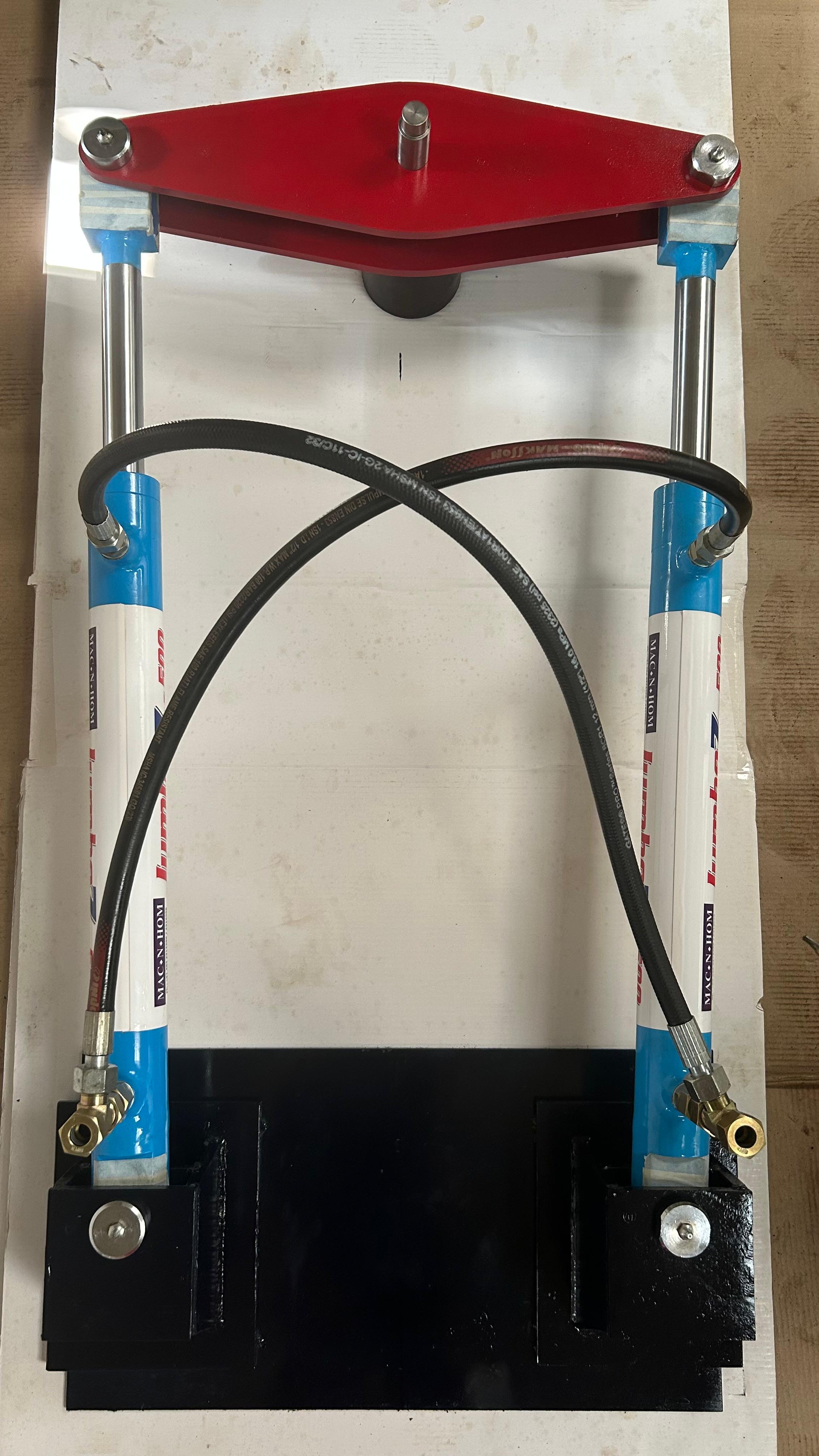

Model : JumboZ-300-M is planned for in-board vessels like

TECHNICAL SPECIFICATION

Specification	JumboZ-Rethna
Hydraulic Actuator Ram Size(mm)	30X2 Nos
Hydraulic Actuator Thrust (Kgf)	2450@ 70kg/cm2
Hydraulic Actuator Torque with Tiller Arm of 180mm (kg.m)	300
Hydraulic Actuator Stroke(mm)	260
Tiller Arm Type	Double Ended
Tiller Arm Turn	Upto 45 ° both sides
Steering System	Steering Wheel/Joy Stick
Emergency Manual Steering	Optional
Low Pressure Alarm	Optional
Temperature Alarm	Optional
Port/Starboard End Alarm	Optional
Rudder Position Indicator	Optional
