JumboZ-500-ED
ENGINE DRIVE / PTO - HYDRAULIC STEERING SYSTEMS

Model : JumboZ-500-ED is planned for medium and heavy in-board vessels like

  •  Heavy Fishing Vessels -100 to 130 feet
  •  Medium barges
  •  High speed passenger vessels

TECHNICAL SPECIFICATION

Specification JumboZ-500
Hydraulic Actuator Ram Size(mm) 40X2 Nos
Hydraulic Actuator Thrust (Kgf) 1400@ 50kg/cm2
Hydraulic Actuator Torque with Tiller Arm of 300mm (kg.m) 500
Hydraulic Actuator Stroke(mm) 440
Tiller Arm Type Double Ended
Tiller Arm Turn Upto 45 ° both sides
Steering System Steering Wheel/Joy Stick
Emergency Manual Steering Built-in
Low Pressure Alarm Optional
Temperature Alarm Optional
Port/Starboard End Alarm Optional
Rudder Position Indicator Optional

ENGINE DRIVEN POWERPACK


ELECTRICAL CONTROL PANEL

Joystick Operated Control Panel for     Twin-Motor Electro-Hydraulic Powerpack

Double Joystick Control Panel for Steering Gear Control

3 Joystick Steering Gear Panel

Joystick Operated Control Panel for Single Motor Electro-Hydraulic Powerpack

Single Joystick Control Panel for Twin Powerpacks

Relay Panel

Powerpack Control Panel

Junction Box

Control Panel Assembly Bay

Control Panel Wiring View


POWER HELM PUMP

STAINLESS STEEL/WOOD CARVED STEERING WHEEL

MOUNTING ARRANGEMENTS

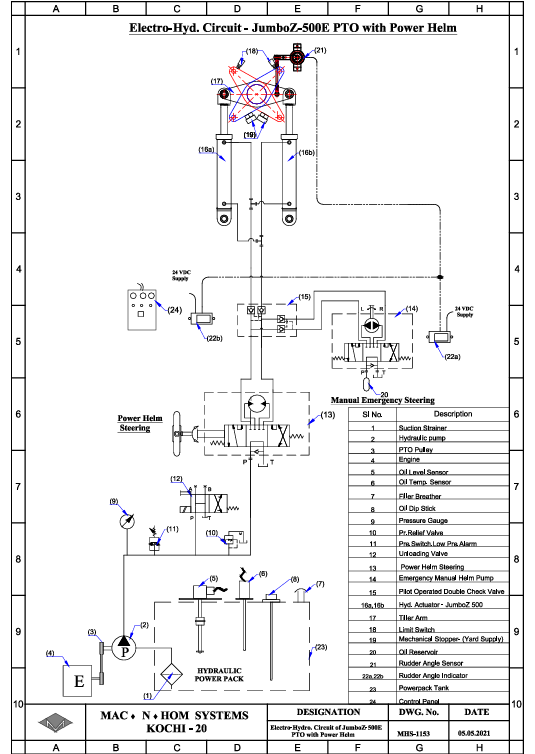

MHS-1153-JumboZ-500-ED-Power Helm
Download

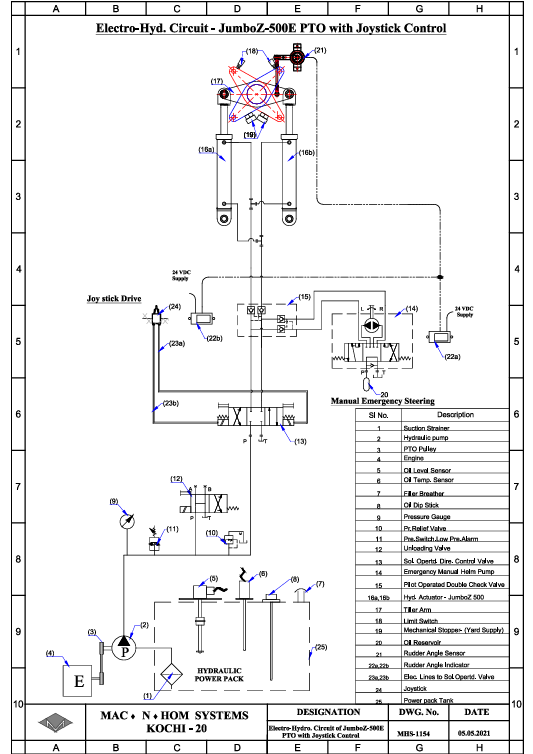

MHS-1154-JumboZ-500ED-Joystick
Download
MHS-1550A-JumboZ-500-ED
Download

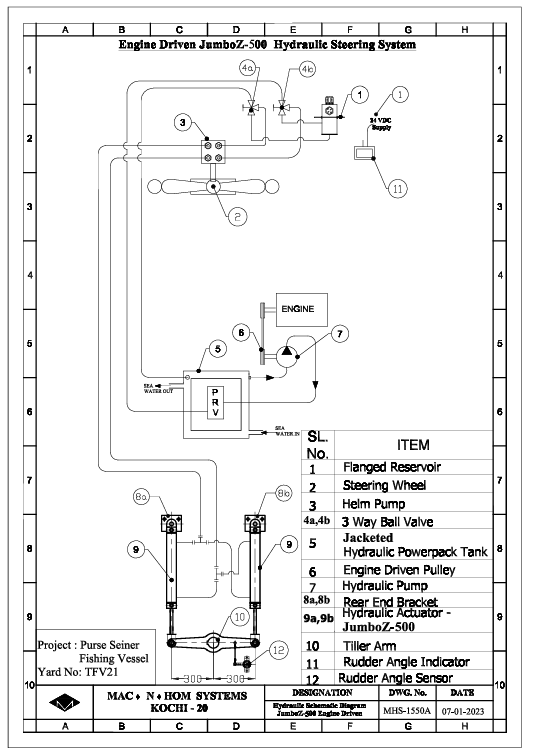

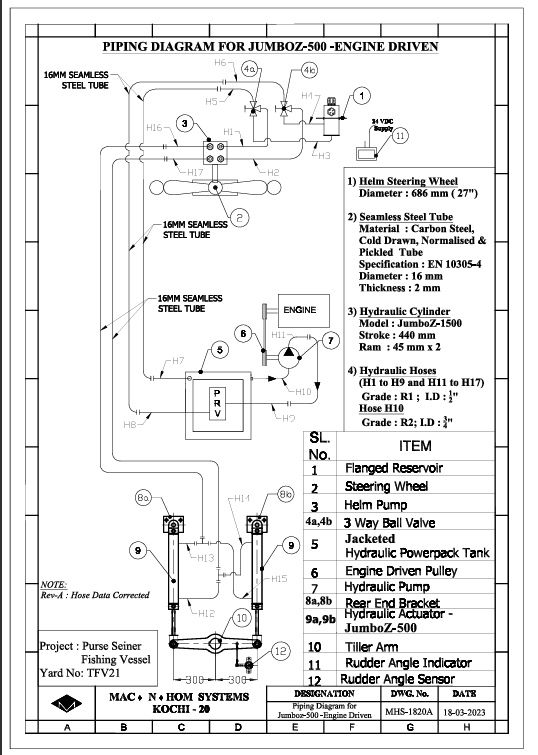

MHS-1820A-JumboZ-500-ED-PIPING Diagram Revised
Download

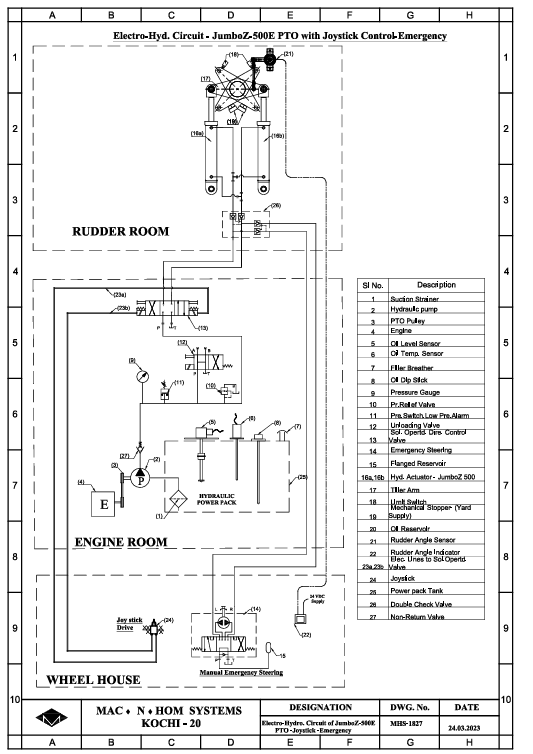

MHS-1827-JumboZ-500ED-Single Rudder-PTO-Joystick
Download

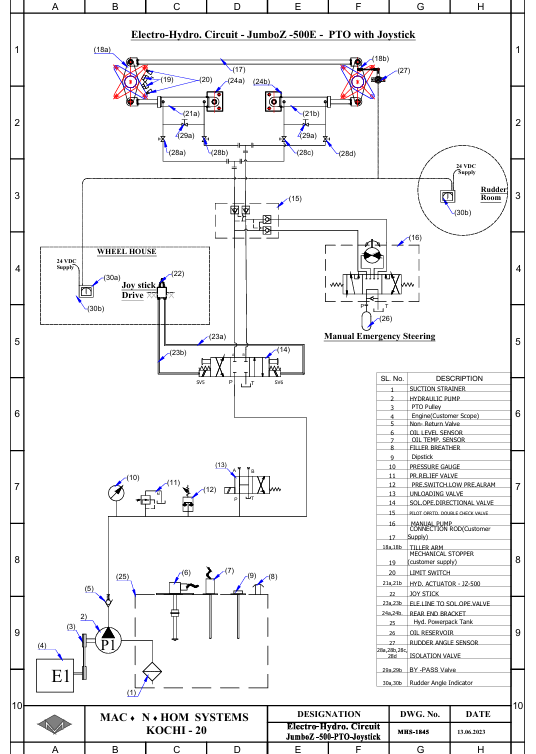

MHS-1845-JumboZ-500-ED-Joystick
Download
