JumboZ-500-M
MANUAL - HYDRAULIC STEERING SYSTEMS

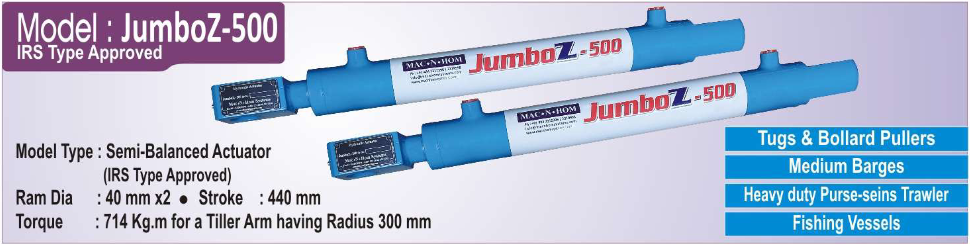

Model : JumboZ-500-M is planned for medium and heavy in-board vessels like

  •  Heavy Fishing Vessels -100 to 130 feet
  •  Medium barges
  •  High speed passenger vessels

TECHNICAL SPECIFICATION

Specification JumboZ-500
Hydraulic Actuator Ram Size(mm) 40X2 Nos
Hydraulic Actuator Thrust (Kgf) 1400@ 50kg/cm2
Hydraulic Actuator Torque with Tiller Arm of 300mm (kg.m) 500
Hydraulic Actuator Stroke(mm) 440
Tiller Arm Type Double Ended
Tiller Arm Turn Upto 45 ° both sides
Steering System Steering Wheel/Joy Stick
Emergency Manual Steering Built-in
Low Pressure Alarm Optional
Temperature Alarm Optional
Port/Starboard End Alarm Optional
Rudder Position Indicator Optional

HELM PUMP ASSEMBLY

Learn More

STEERING WHEEL ASSEMBLY

Learn More

HYDRAULIC OIL ROUTING SYSTEMS

Learn More

MARINE-COATED FERRULED SEAMLESS STEEL TUBES

Learn More

HYDRAULIC OIL ROUTING SYSTEMS

Learn More

HYDRAULIC OIL ROUTING SYSTEMS

Learn More

RUDDER ANGLE SENSORS AND INDICATORS

Learn More

MOUNTING ARRANGEMENTS

MHS-1046-JumboZ-500M
Download

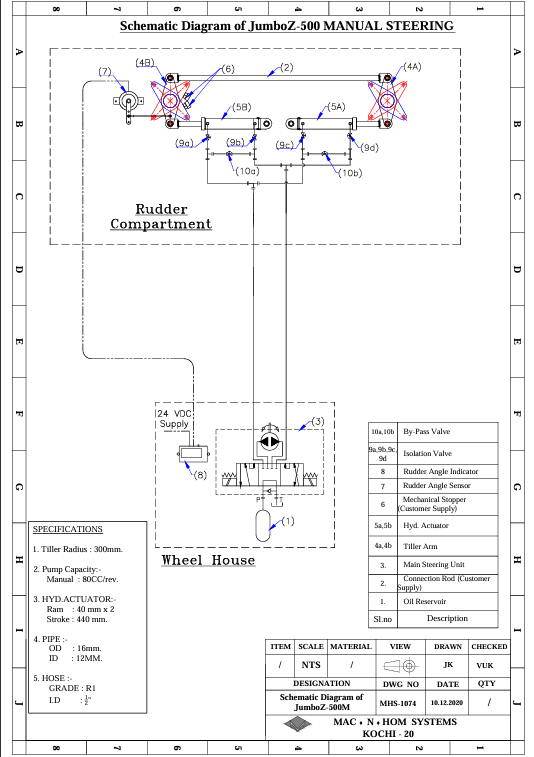

MHS-1074-JumboZ-500M
Download

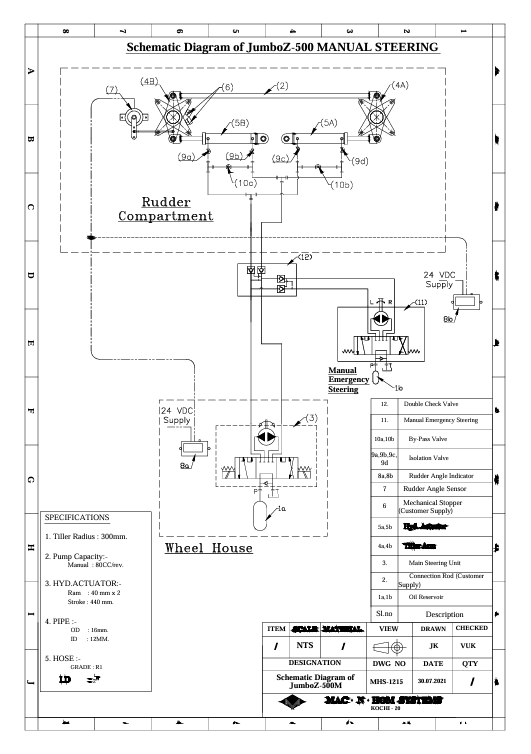

MHS-1215-JumboZ-500M
Download

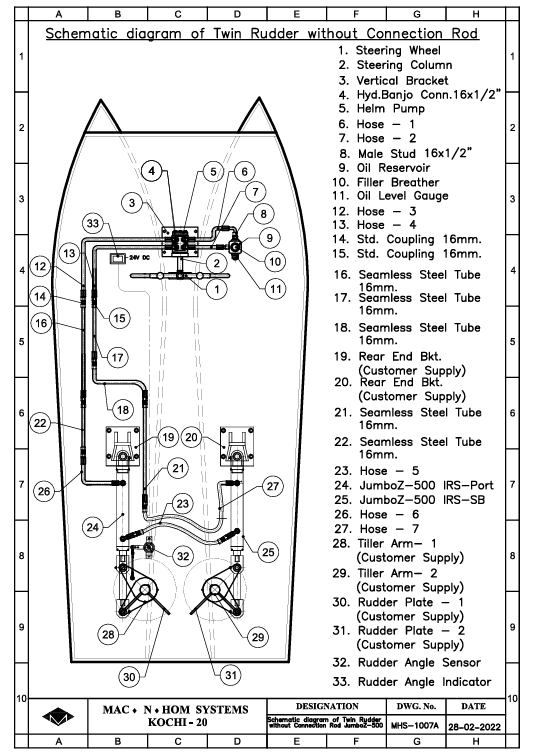

MHS-1007-A-JumboZ-500M-Catamaran
Download

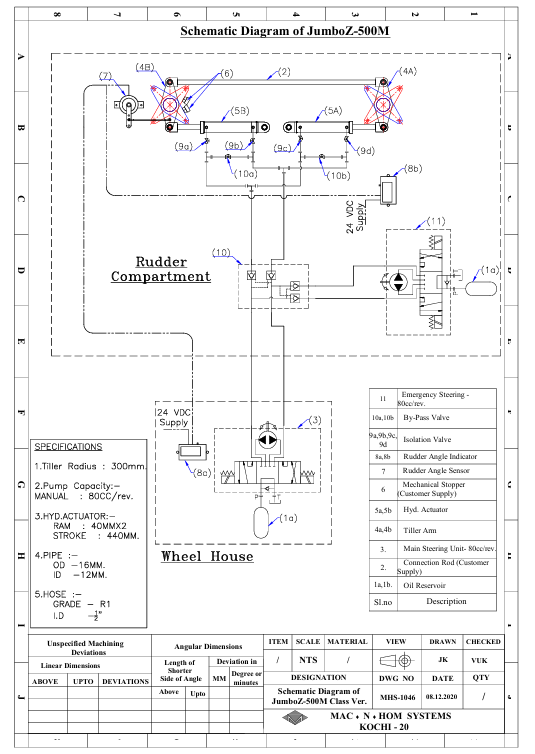

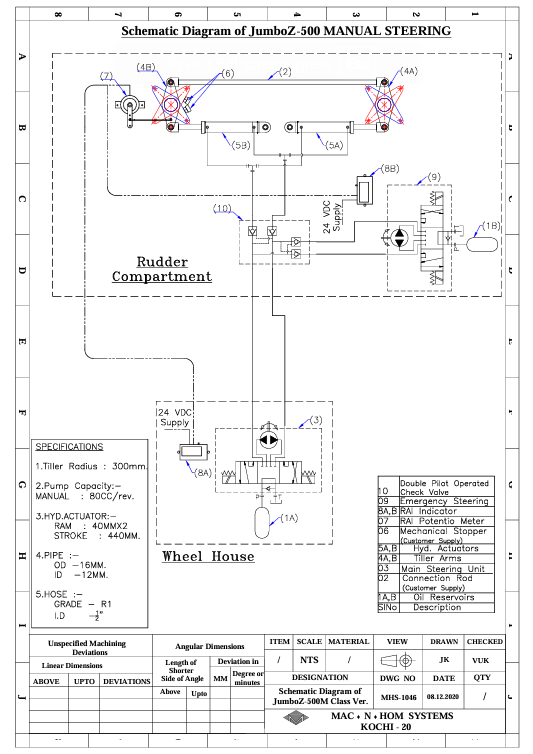

MHS-1046-JumboZ-500M-Class Version
Download

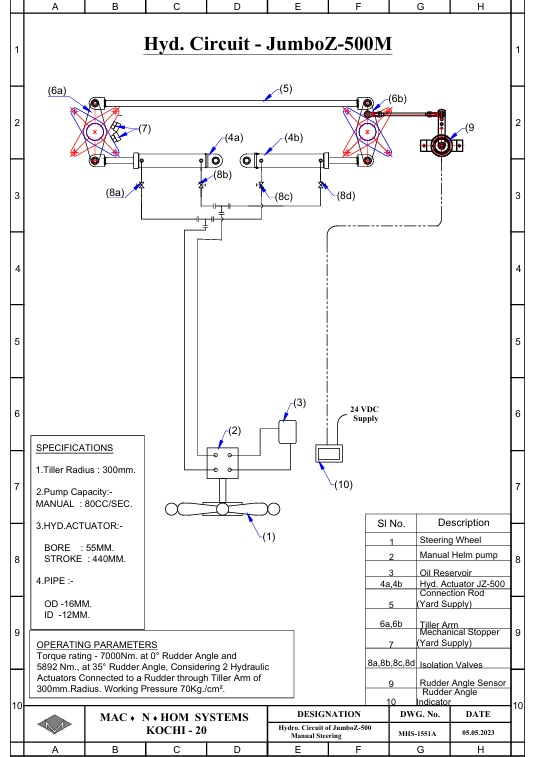

MHS-1551A-JumboZ-500-M
Download

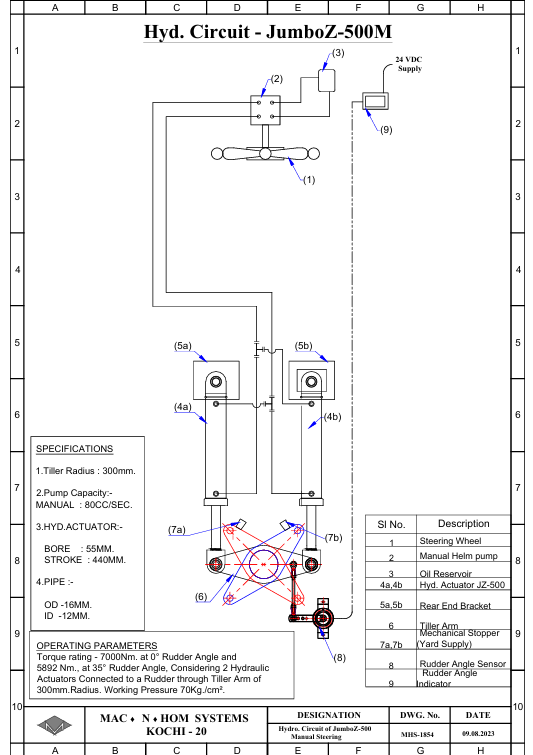

MHS-1854JumboZ-500-M-Single Rudder
Download

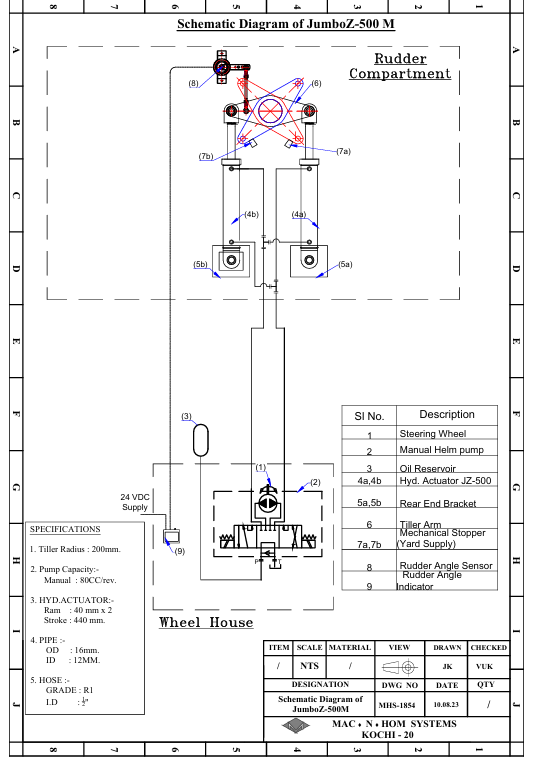

MHS-1854-JumboZ-500-M-TiAr-200-Single Rudder
Download

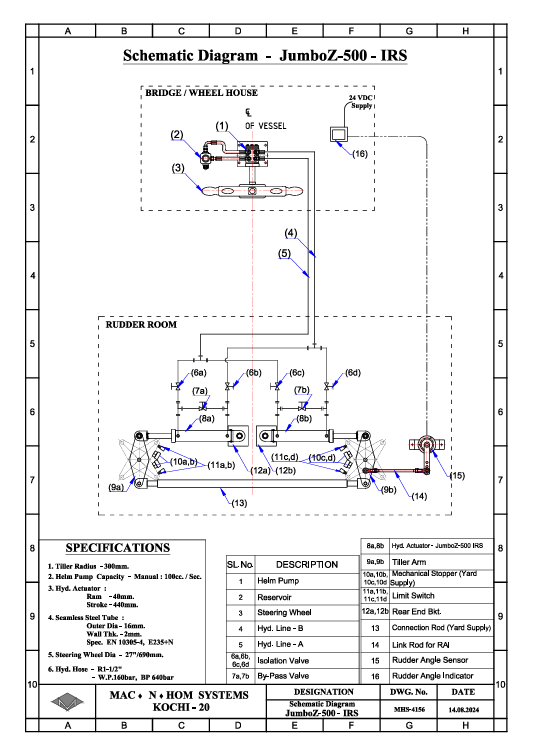

MHS-4156-JumboZ-500-M
Download

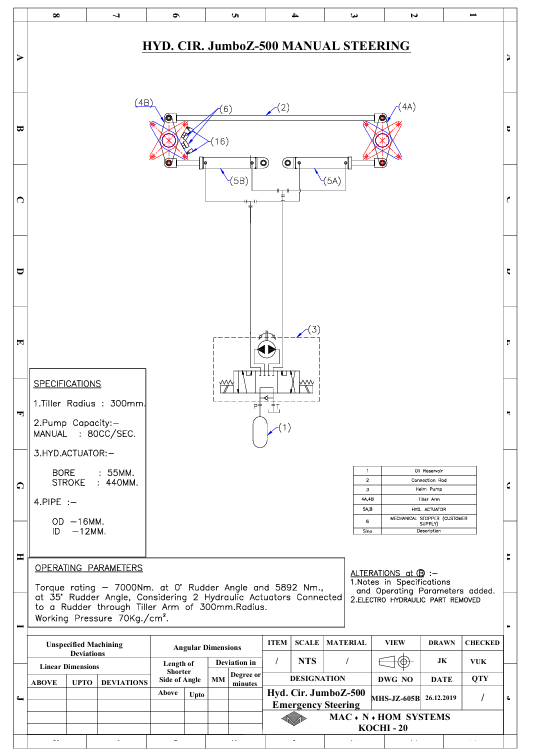

MHS-JZ-605B-JumboZ-500-M
Download

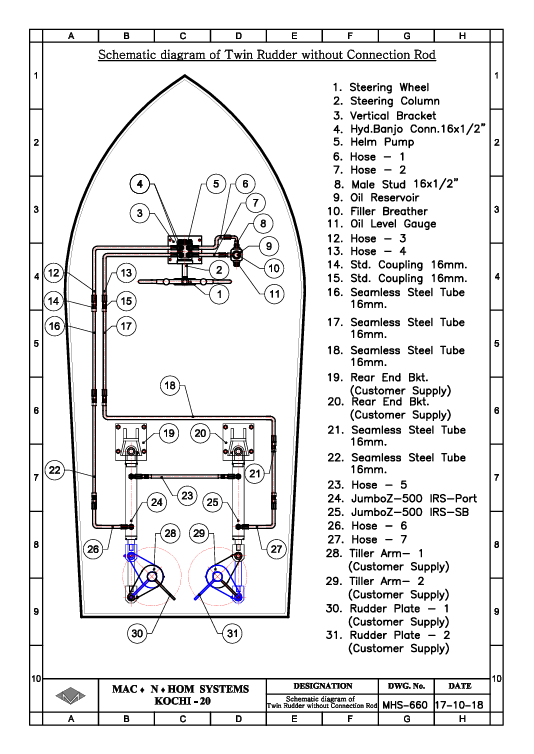

MHS-660-JumboZ-500-M wo Con Rod
