RAPID EMPEROR MOUNTING ARRANGEMENTS

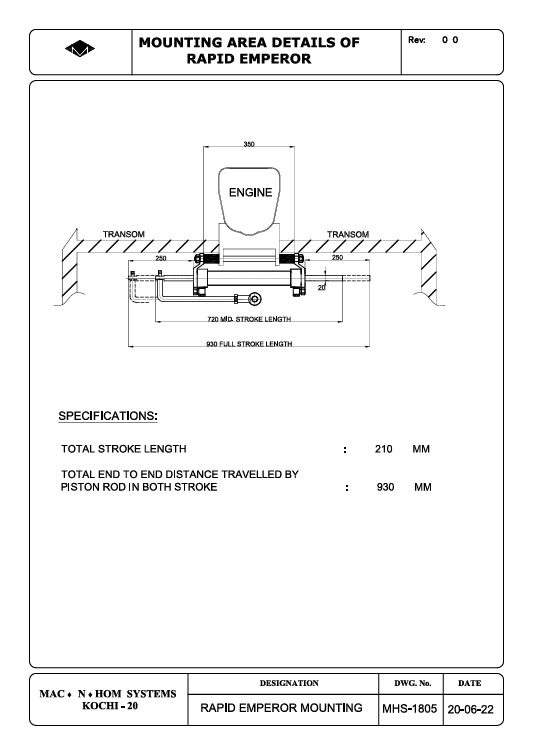

MHS-1805- RAPID EMPEROR MOUNTING
Download

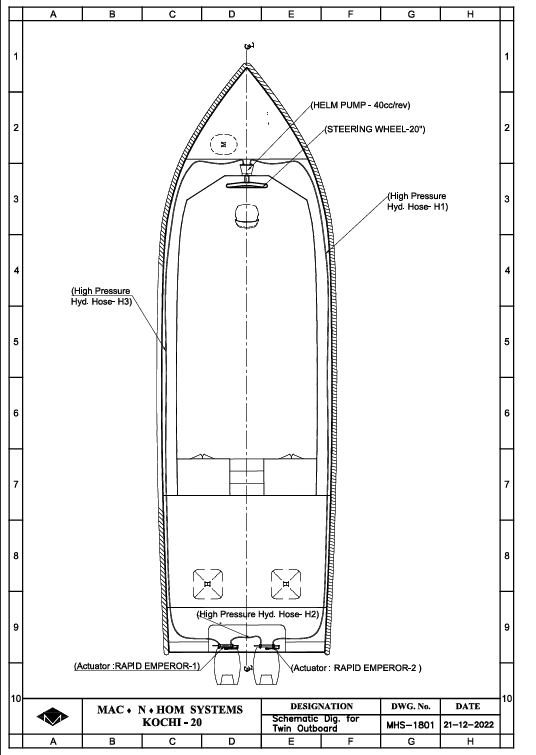

MHS-1801- OB- Twin Engine-Twin Actuator
Download

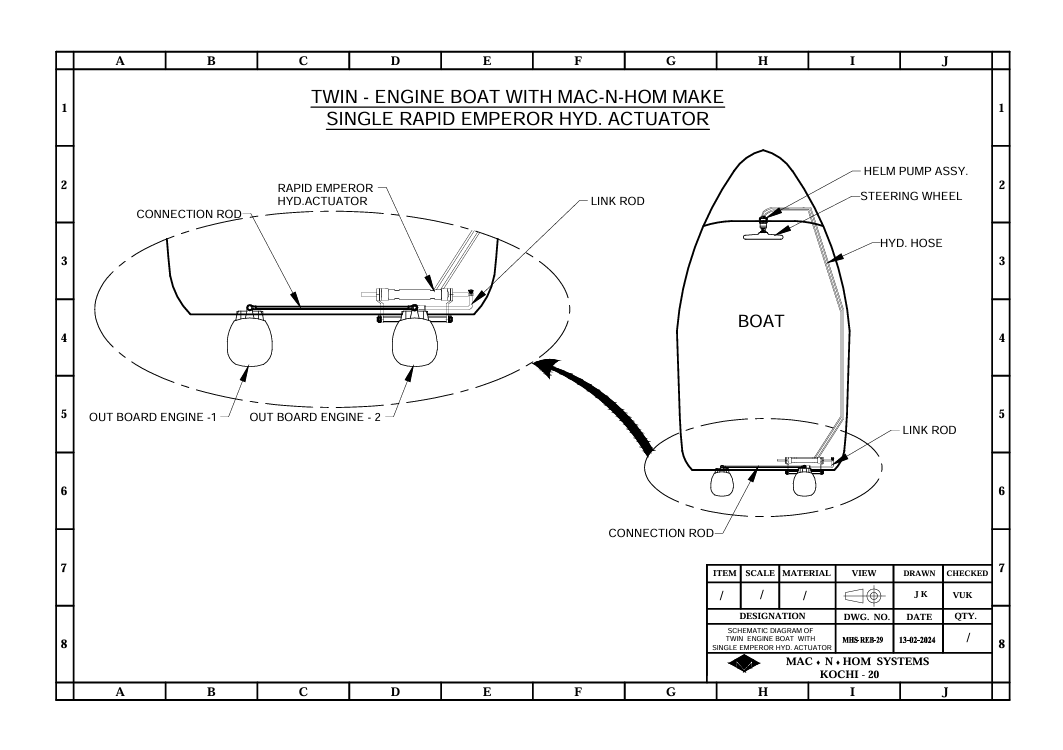

MHS-REB-29
Download
